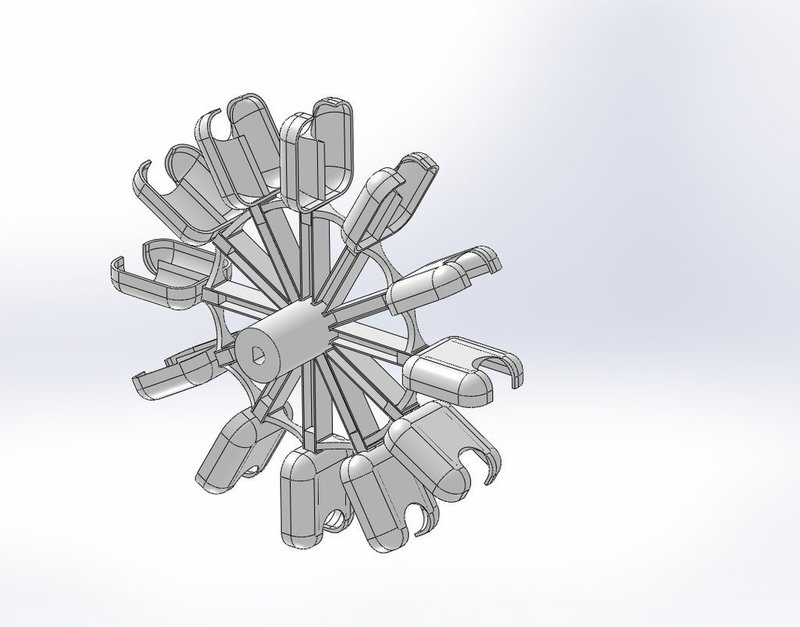

SummaryThis is a 12 paddle wheel designed for low head, low velocity flow. Very light and efficiently designed. Parts are modular and snap together.InstructionsNeeded - 1 inner wheel, 12 paddles.
STL and solid works parts are included. If you have any suggestions for improvements, I would be happy to make them.
The paddles snap into position.
Model has been printed and tested successfully. Pictures to come.
