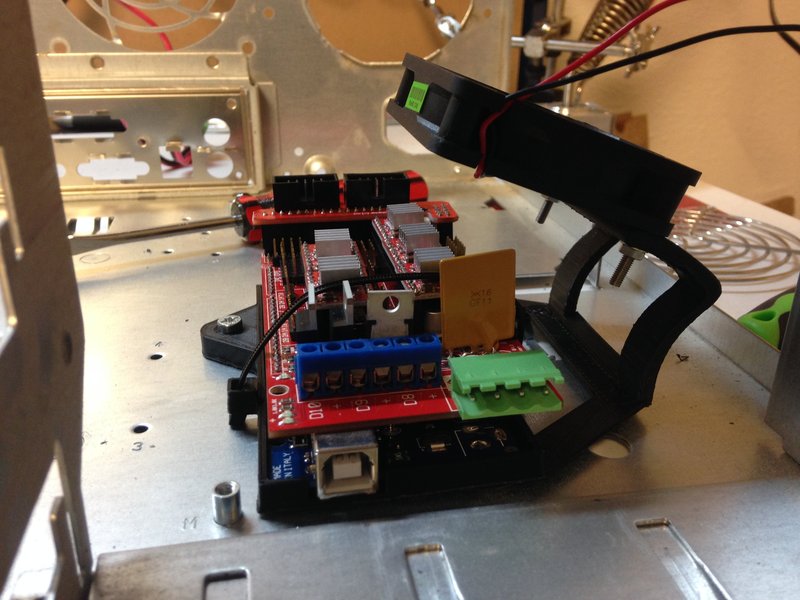

This mounting plate is designed for the Arduino MEGA 2560 when being used with a RAMPS 1.X shield for use in 3D Printers such as the Prusa or other DIY applications.
This design allows the control board to be mounted quickly and easily with 2 small zip ties while maintaining easy access to the board when mounting it inside a larger case. The addition of a single 60mm fan mount allows for active cooling while keeping the fan stable and out of the way.
Please feel free to comment with suggestions for improvements.
.25mm optimized
Support required
