Ciclop Camera Holder with No Supports
Free

SummaryThis is the same exact Camera Holder provided by BQ labs for the Ciclop 3D Scanner project with the exception of included supports. I found the supports to print poorly on my printer.

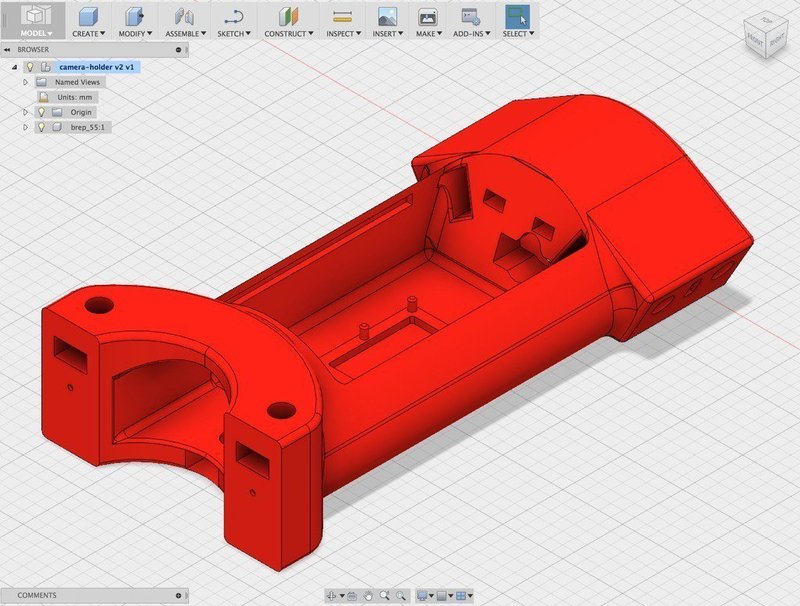

I edited the source files (https://github.com/bqlabs/ciclop/tree/master/step) in Fusion 360 and making the STL available here for others who prefer their slicer to setup supports. I hope others find this useful.

Print SettingsRafts: Doesn't Matter

Supports: Yes

Resolution: User/Printer Preference

Infill: User/Printer Preference

Notes: I've successfully printed this on a Printrbot Metal Plus with the following Cura settings:

1.75 mm PLA .4 mm Nozzle 20% Fill 12 Line Brim Support Type: Everywhere Grid, Overhang at 60, Fill 15% X/Y Distance .7 mm Z Distance .15 mm

How I Designed ThisFusion 360
