Poly pipe joiner, 1 1/4"
Free

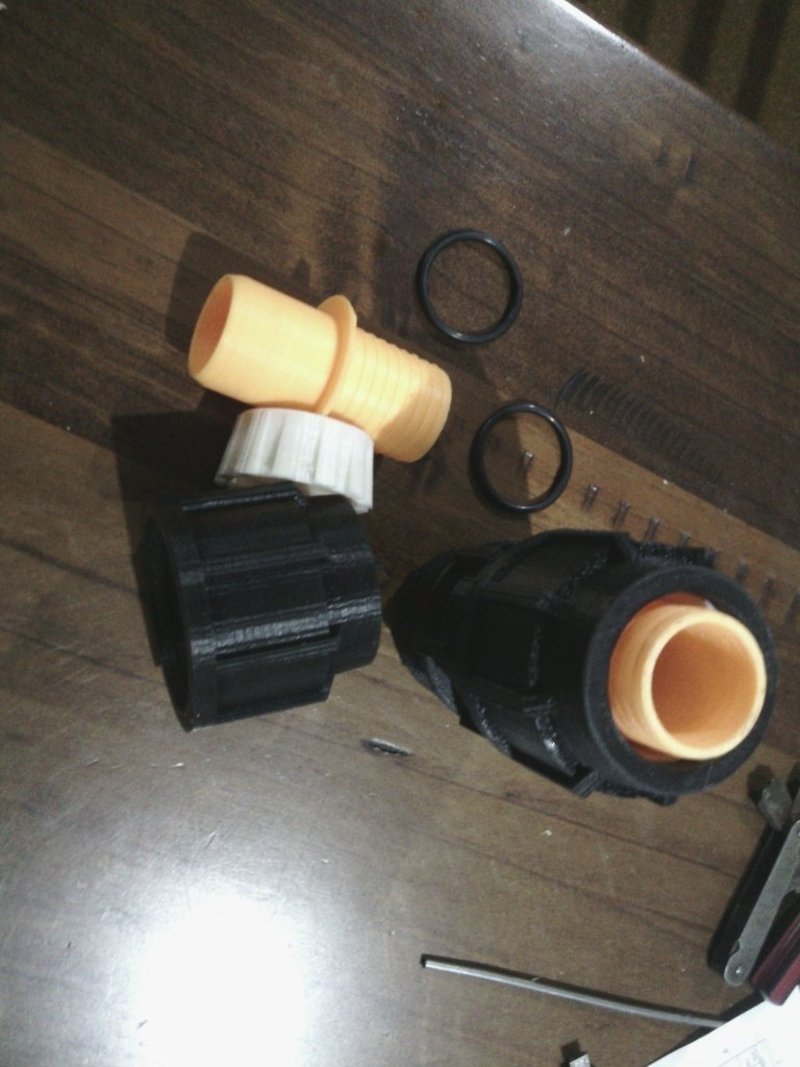

SummaryI can't believe no-one has done this before. It's a poly pipe joine for 1 1/4" ag pipe, green stripe, medium density pipe, what ever you want to call it. Plain old "ag pipe" in Oz. You know what its like, it's a weekend, it's a 3 hour return trip to the hardware store but it's closed anyway, and you've just dug ut the pipe you forgot was there. As always, the box of spares in the shed has every other size except the one you want. No water for the animals till you fix it. Well here is one solution, print it. The o rings are standard 1/8" x 1 3/16" ID.Print SettingsPrinter Brand: RepRapPrinter: Prusa i3Rafts: YesSupports: YesResolution: 0.15Infill: solidNotes: Raft on the insert only. Support on the joiner and insert. I used ABS for everything.

Loading comments...

Loading prints...

Poly pipe joiner, 1 1/4"

likes
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

4 downloadable files:

View 3D
Locking_collar.STL
STL Model
221.2 KB
File size
View 3D
insert.STL
STL Model
356.1 KB
File size
View 3D
clamp.STL
STL Model
763.1 KB
File size
View 3D
joiner_v3.STL
STL Model
2.2 MB
File size
Free download - login required
Downloaded: 64 times
