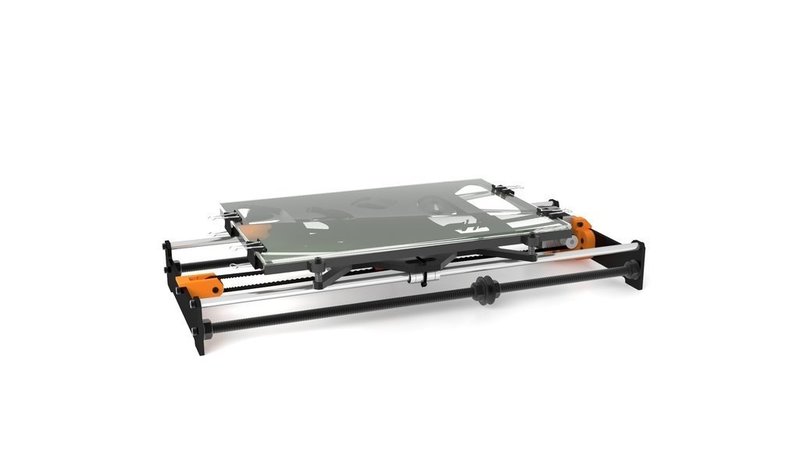

SummaryBed 20x30cm Upgrade for Prusa i3.
Previously it's necessary print in the 3D printer this parts:
-Y axis tensor
-Y axis motor
-Y axis end stop baseInstructionsBill of materials:
-1 x GT2 pulley (20 theet)
-1 x GT2 belt 6mmx m
-4 x Standard Spring 30.5x4.5x0.45
-2 x Ø8X440MM-CROMAD Smooth rod M4 Inner threaded (.dxf attached)
-2 xThreaded rod M10 x440 mm with M4 innerthreaded (.dxf attached)
-1 x 200x300x8mm black acrylic printing bed (.dxf attached)
-1 x Glass 200x300x5mm (.pdf attached)
-1 x Black aluminum 4mm front (.dxf attached)
-1 x Black aluminum 4mm back (.dxf attached)
-8 x M4 Washer Nylon - DIN 125N-4 White
-8 x M4x16 Screw
-5 x M3x25 Screw
-4 x M3 x10 Screw
-2 x M3 x20 Screw
-3 x M3 Nut
-4 x M10 serrated Nut
-Y Axis printed tensor (STL attached)
-Y Axis printed motor (STL attached)
-Y Axis end stop base (STL attached)
