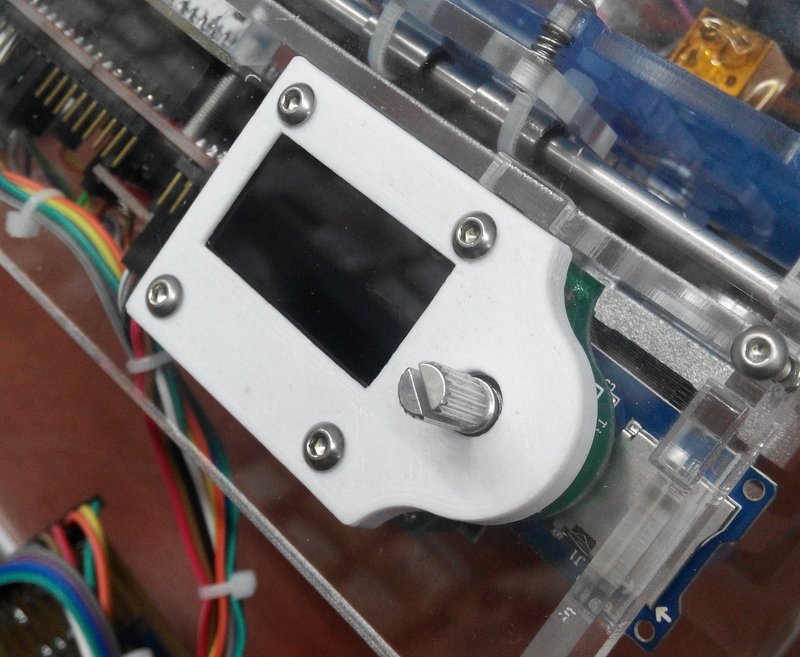

TinyOLED V1.2 Module 128x64 for RAMPS

  • 128x64 pixel 1.3" I2C OLED / 0.96" I2C OLED (Detachable) • TinyOLED V1.2 Connector Board (Custom Design : 45mm x 37mm) • TF Card Module (Offline Printing, Detachable) • Rotary Encoder (User Control) • BlueTooth HC-05 Module (Wireless Connection - short range, Detachable) • ESP8266-01 WIFI Module (Wifi Connection - long range, Deachable)
    • Printing Option
  • USB (COM Port) + TF Card + Bluetooth (COM Port)
  • USB (COM Port) + TF Card + WIFI (COM Port)
  • WIFI (TCP/IP) + TF Card + Bluetooth (COM Port)
  • Change Bitmap to OLED with LCD Bitmap converter http://forums.reprap.org/read.php?276,446731,448751#msg-448751 http://ati-soft.biz/lbc.htm
    • http://www.HKMakers.hk

    https://www.youtube.com/watch?v=C3Gf1nd3yl0
