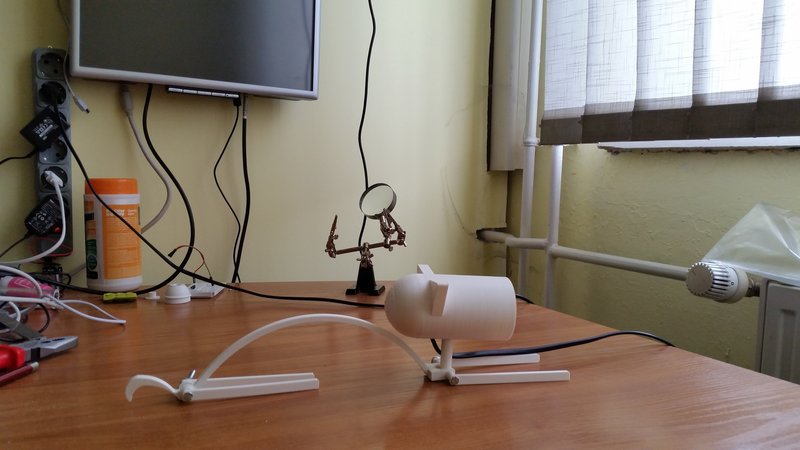

My First desk lamp shaped a cat.
Very easy to print and assemble. Can sit, lying ect...
IMPORTAN NOTICE be very carefull when do wiring!!! Always shield the wires and please use LED bulb.
Items need for assemble: 1 screw M4 50mm (back) 1 screw M4 60mm (front) 2 bolt M4 or wing nut 1 GU10 lamp socket. (http://www.ebay.co.uk/bhp/gu10-lamp-holder) 1 wire connector 1 GU10 LED lamp 1 wire with switch and plug 3 screw nail (10mm) (two for the GU10 socket one for the neck) Super Glue
The back and the shoulder have to be glued together. GU10 socket hav e to be secured with two screw nail and the wires goes throu the little holes. Put the connector on the back of the socket plate. Glue the head back to the head. You can put the screw nail into the neck from inside the head, maybe you can drill a hole to help it. Little tricky but if you put a washer uner it it can be easily tightened. If you hold vertically the head and put the bulb in it you can find the holes for the GU10 socket. The shoulder shoud make the legs spread a bit for stability.
