Useless Box
Free

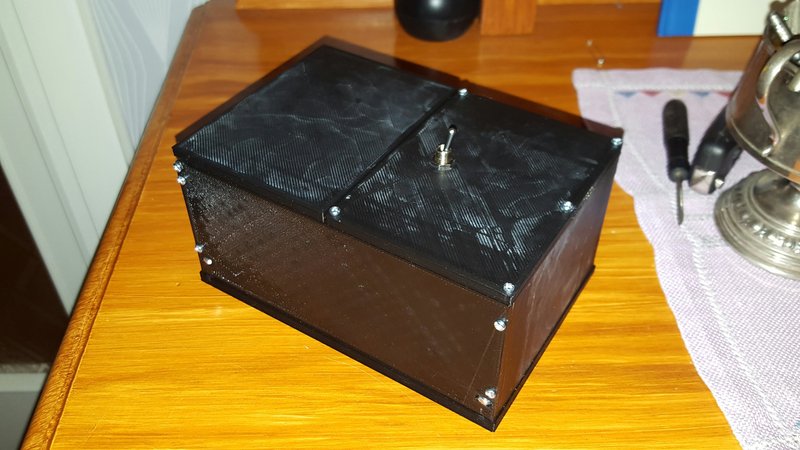

This is my version of the useless box. I was searching the net for a rigid one and one that my things could fit in, to print. But there was no one. So i drew this one in fusion360 having in mind that it would be easy to print and easy to build.

I use a standard size modded servo (futaba FP-S148) here is a good instructableshttp://www.instructables.com/id/Remove-a-Servo-Controller/

A micro switch http://www.ebay.com/itm/10-pc-TEMCo-Micro-Limit-Switch-Lever-Arm-Subminiature-SPDT-Snap-Action-LOT-/281353659655?hash=item4181fc2507:g:xcgAAMXQ9otTj4uW

A micro toggle switch 2 pole on/on

and a 4 AA battery holder

you need a bunch of M3 bolts and some M4 nuts and bolts.

https://www.youtube.com/watch?v=-TG3i88PaUQ

I'm making a video of how to put it together. but it will take a while. ;-)

Print Settings

Printer Brand: RepRap

Printer: mono mendel

Rafts: No

Supports: No

Resolution: 0,25

Infill: 20%

Notes:

3 perimeters top/bottom 1.4-2 mm depending on your layerhight.

Loading comments...

Loading prints...

Useless Box

likes
4 collections
Creative Commons Attribution-NoDerivatives

You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.

CC BY-ND Licensed under CC BY-ND
Files Included

9 downloadable files:

View 3D
arm.stl
STL Model
57.1 KB
File size
View 3D
back.stl
STL Model
67.8 KB
File size
View 3D
base.stl
STL Model
50.1 KB
File size
View 3D
front.stl
STL Model
67.8 KB
File size
View 3D
left.stl
STL Model
94.4 KB
File size
View 3D
lid.stl
STL Model
49.8 KB
File size
View 3D
right.stl
STL Model
101.7 KB
File size
View 3D
sevomount.stl
STL Model
27.2 KB
File size
View 3D
top.stl
STL Model
31.7 KB
File size
