Chain v1 (looped and open versions)
Free

I've included two versions of this model... one is a complete loop, and the other is open.  (Hint:  The only difference is that the "open" version is missing one link. )  None of the links touch each other, so the idea here is that--once removed from your build surface--you will have a true 3D-printed chain to secure your 3D-printed King Kong, monster, evil leprechaun, et cetera.  :) Each link of the chain is 2" long and 1" wide, with a 0.25" diameter.  Each link is tilted at a 45° angle, so make sure your printer can perform that task... otherwise, add supports and have fun cleaning it up.  I haven't printed this model yet, since my printer is down for a while... but I'll post images if/when I'm able to print it. This is my first variation of this design, and it has not been tested.  Print at your own risk (of course).  In the future, I plan to add links to this model by using a spiral pattern instead of a simple circle.  I may even add a hook to one end, and perhaps a wall-mount on the other.  (Would make an interesting towel hanger for your bathroom... but your wife won't like it much, unless you print it in pink.)  :) The main image here shows the chain with alternating colors.  If you have a dual-color printer and would like to print it that way, simply ask and I'll add "Color A" and "Color B" STL files here.

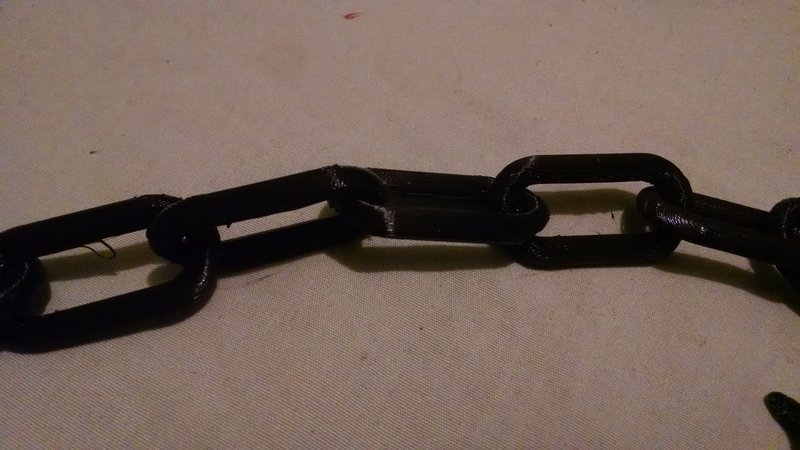

I may also add another version of this model with the links tilted at a lesser angle, if anyone has issues printing the links at 45°. At any rate, I hope you enjoy.  Please share any prints, comments, or suggestions. Thanks! ***UPDATE*** I was finally able to print this model, after repairing my DaVinci 1.0 Pro.  I did not use a raft or any supports, but should have used a raft due to the very small surface area that these chain links have to adhere themselves to the print bed.  I lost several links during the print, but still ended up with a length of chain that is about 21 inches long, and looks pretty nice. I printed this using black RioRand PLA at 200°/50°C with 0.25mm layers,  and15% infill.  Total print time was about 5h:10m.  Definitely use a raft, if you print this object... and by all means, please share photos of your print.

Loading comments...

Loading prints...

Chain v1 (looped and open versions)

likes
2 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
Chain_01_looped.stl
STL Model
~1-5 MB
File size
View 3D
Chain_01_open.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 300 times
