G36 Fire Selector
Free

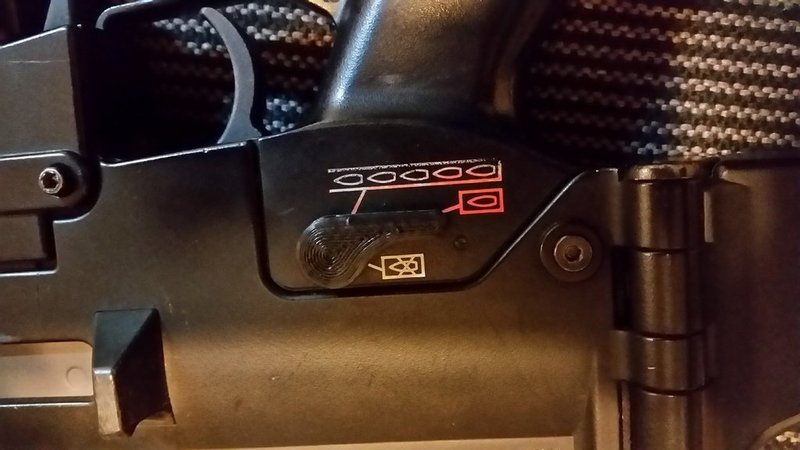

SummaryThis is a Fire Selector for a airsoft G36 based on my Tokyo Marui fire selector switch. It's the left part, to make the right one, you will need to mirror it. You will find 2 version of the fire selector, the "big" one holes in the back are a little bit bigger (0.25mm) to compensate for my FDM printer hole setting. There is a hole for a set screw to hold the fire selector in place but I didn't need it in my case the big version was tight enough. You can use your original metal ball to hold the fire selector in position or use a little piece of filament (nylon would be best).Print SettingsPrinter: BI v2.5Rafts: NoSupports: NoResolution: 0.2Infill: 50%+Notes: The rotating switch is hard to turn and will require a resistant part to handle. Use a least a 0.4mm head and 0.2mm resolution to get enought strengh when trying to turn the switch with the selector lever.

Loading comments...

Loading prints...

G36 Fire Selector

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
G36_FireSelectorSwitch_Big.stl
STL Model
396.9 KB
File size
View 3D
G36_FireSelectorSwitch_Std.stl
STL Model
396.9 KB
File size
Free download - login required
Downloaded: 52 times
