RepRap Wilson Discount LCD Case & Mount
Free

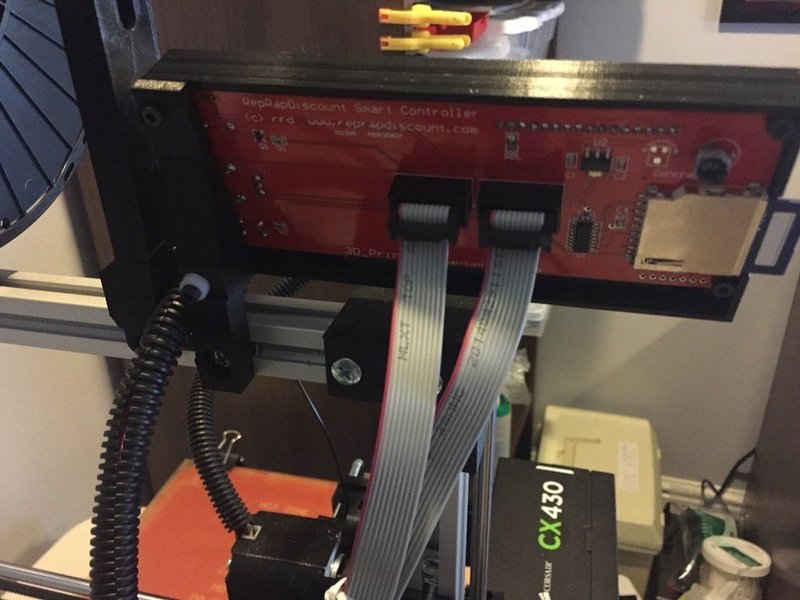

SummaryThis thing will dress up your exposed RepRap Discount LCD Controller. In addition to the printed parts, you will need the following: M3 8mm machine screws (quantity = 2) M3 10mm machine screws (quantity = 1) M3 25mm machine screws (quantity = 1) M3 nuts machine screws (quantity = 4) You will reuse one of the existing M5 screws (and T-nut) to mount the final assembly. Enjoy your new swank upgrade!Instructions Print out the LCD case and the mount Insert the 4 M3 nuts into the LCD case mount near the 4 corners Insert your RepRap Discount LCD into the case Insert the M3 8mm screws into the corners closest to the SD card Lay the mount atop of the other side of the LCD case with the support overhanging the bottom of the LCD case Insert the M3 10mm screw into the upper remaining corner Insert the M3 25 mm screw into the lower remaining corner Use the original M5 screw and T-nut (preferably along the top rail) and afix the assembly to the Wilson
