DigiPixel Case (arduino)
Free

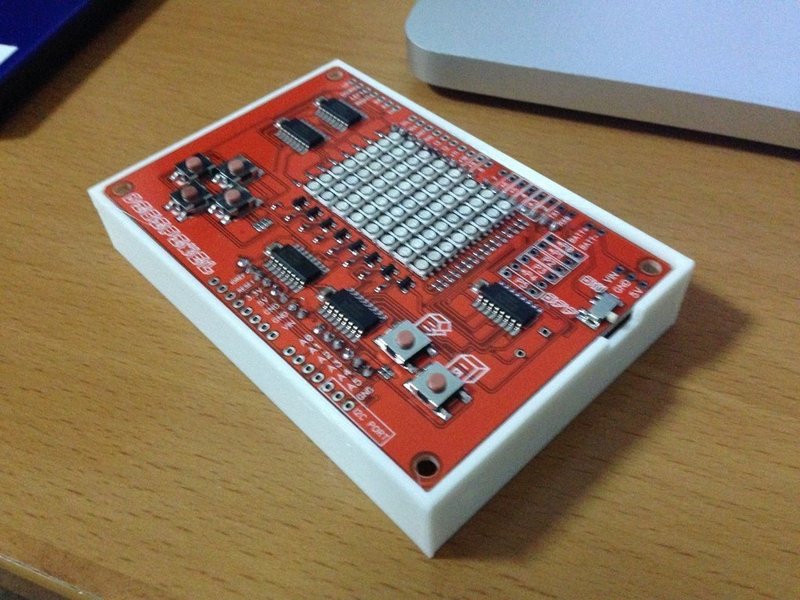

SummaryUpdate ( V5 ) -Fixed the Body/face as buttons didnt click properly and spacing of the PCB board was not great. -Fixed the power switch shape to fit the new body. -Fixed the battery cover as it was not fitting right and it didnt stick to the body. %% I am printing the case now to check if the changes made any difference Update Just tweaked the case, still working on it but after fiddling and a couple of prints I have something that resembles a case. -Still needs some tweaking but this case works for now. -Once I get the digispark I will make adjustments. Just got my Digipixel from Kickstarter and I've been working on this case. Now I can print the case and have a nice LED hand held. I am still working on the case, I will post pictures once it7s done printing. Enjoy and let me know if it worked for you, I placed everything separately as it could be multicolor. Also there is a case.stl which is the whole thing but I don't think it will print nicely. Also I still have no back as I am figuring out what best place the battery will fit. Cheers http://www.bradsprojects.com/the-digipixel/ Update Bumper fixed, made it a bit bigger, also might do one without homes for USB and battery (Will do after first full case completed)InstructionsWill update once I have the parts ready. You might have to flip 180 some parts so they can print. Cheers

Loading comments...

Loading prints...

DigiPixel Case (arduino)

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

11 downloadable files:

View 3D
DP-Top.STL
STL Model
145.4 KB
File size
View 3D
spacer.STL
STL Model
21.2 KB
File size
View 3D
Switch.STL
STL Model
4.4 KB
File size
View 3D
bumper.STL
STL Model
22.3 KB
File size
View 3D
Case.STL
STL Model
193.1 KB
File size
View 3D
Bumper-V2.stl
STL Model
120.2 KB
File size
View 3D
DP-Battery-v1.stl
STL Model
77.8 KB
File size
View 3D
DigiPixel-FaceV3.stl
STL Model
475.0 KB
File size
View 3D
DP-Switch-V5.stl
STL Model
18.8 KB
File size
View 3D
DP-Battery-V5.stl
STL Model
77.8 KB
File size
View 3D
DP-BodyV5.stl
STL Model
491.1 KB
File size
