GoPro Hero2 Gimbal fits standard GoPro Mounts
Free

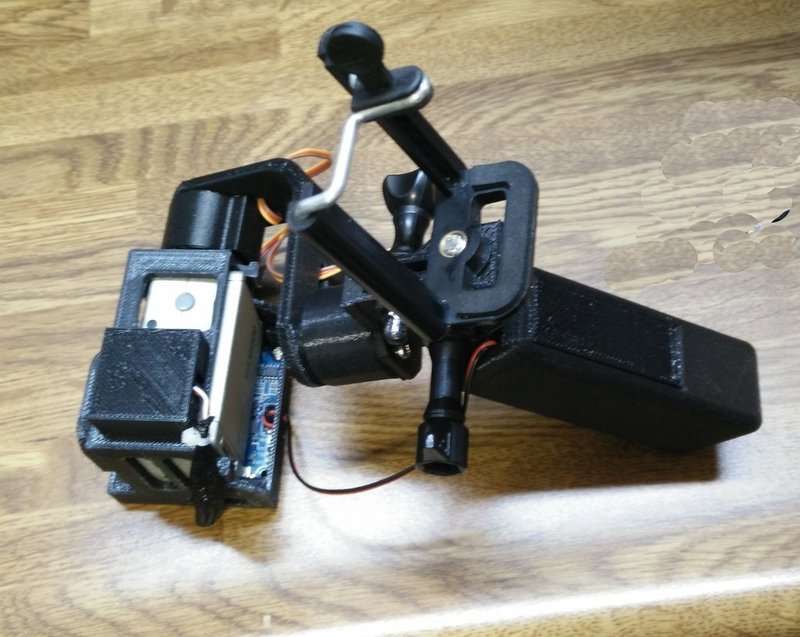

SummaryWanted a self contained Gimbal for the GoPro Hero 2. Lots to chose from but all were missing something. Decided to take the best of several and customize to my needs. The camera case contains the electronics for the Stabilizer which leaves only the power wire leaving the assembly. This is a remix of: http://www.thingiverse.com/thing:72288, basic housing. http://www.thingiverse.com/thing:479222 for the arms and motor covers. The controller used is this one: http://www.banggood.com/BGC-3_1-2-Axis-Brushless-Gimbal-MOS-Controller-with-Mini-GY6050-Sensor-p-957358.html The two motors used are these: http://www.hobbyking.com/hobbyking/store/__42247__Quanum_2208_Precision_Brushless_Gimbal_Motor_GoPRO_size_100_200g_.html In the picture you'll see a yellow handle, this is just something in the camera bag to hold the GoPro while diving. Will add a pistol grip soon. Enjoy 12/20/15: Decided to add a mount to hold my Cell phone to control the camera. 12/25/15: Added cover for the sensor. Stronger Cell Phone adapter added. Added grip and battery holder for Rhino 610 Lipo http://www.hobbyking.com/hobbyking/store/__7308__Rhino_610mAh_3S_11_1v_20C_Lipoly_Pack_.html On/Off Switch at bottom of grip Added settings used for the PID of the Gimbal. NOTE: This controller requires 12 volts, low voltage causes the gimbal to behave unpredictably.

Loading comments...

Loading prints...

GoPro Hero2 Gimbal fits standard GoPro Mounts

likes
2 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

10 downloadable files:

View 3D
GoPro_Housing_with_Controler.stl
STL Model
742.9 KB
File size
View 3D
Junction_Arm_Long_Back.stl
STL Model
1.3 MB
File size
View 3D
Motor_Cover.stl
STL Model
1.0 MB
File size
View 3D
GoPro_Mount.stl
STL Model
861.2 KB
File size
View 3D
GoPro_Mount_with_Phone_Mount_v3.stl
STL Model
207.2 KB
File size
View 3D
GoPro_Mount_with_Phone_Mount_v4.stl
STL Model
1.2 MB
File size
View 3D
Phone_Holders.stl
STL Model
705.0 KB
File size
View 3D
Controller_Cover.stl
STL Model
10.6 KB
File size
View 3D
Case_No_Internals.stl
STL Model
778.6 KB
File size
View 3D
Case_Cover_no_Cutout.stl
STL Model
38.8 KB
File size
