kossel spool holder
Free

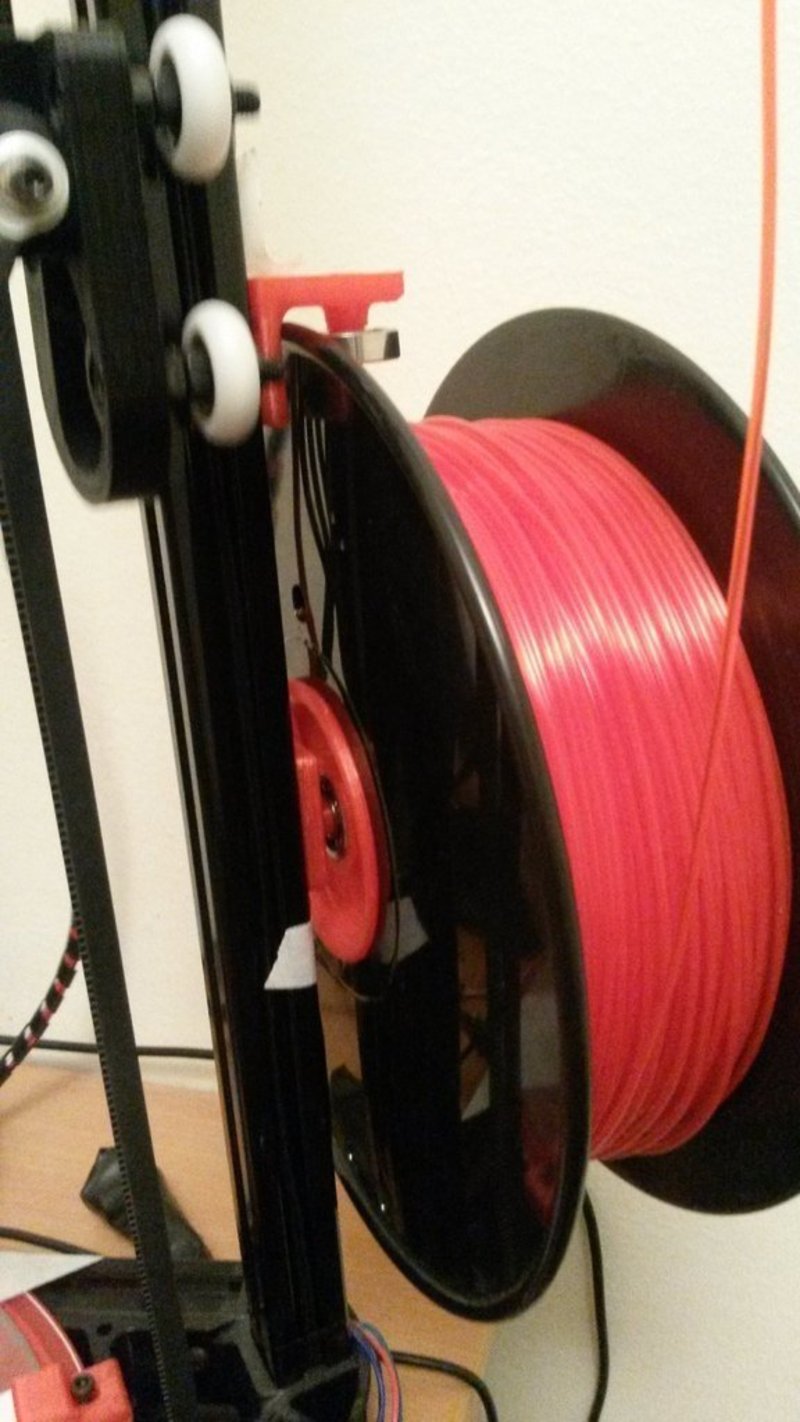

Summarythis is a remix a made based on BOrax Kossel compact Filament Spool Holder concept. i found ball bearings at size of 19 mm OD 6 mm ID and 6 mm width so i made the parts to fit them. i included the STEP files so you can make changes if you need to fit other bearings. it is designed to connect with two M4X8 screws and washers and two M3X8 screws directly into the small holes to secure the bearings.Print SettingsRafts: Doesn't MatterSupports: Doesn't MatterResolution: 0.2Infill: 20%

Loading comments...

Loading prints...

kossel spool holder

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

3 downloadable files:

View 3D
30_base.STL
STL Model
297.9 KB
File size
View 3D
spool_57.STL
STL Model
304.8 KB
File size
View 3D
top_holder.STL
STL Model
437.5 KB
File size
Free download - login required
Downloaded: 23 times
