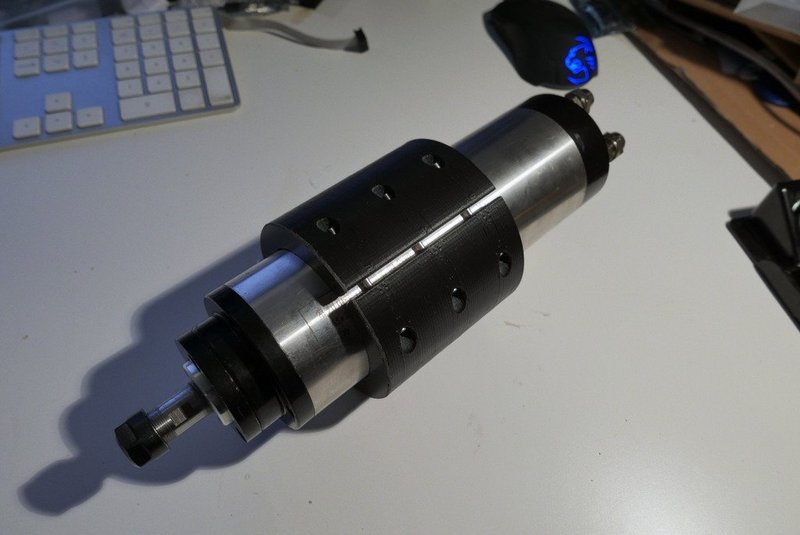

3 1/2 inch (89mm) to 65mm CNC Spindle adapter sleeve
Free
SummaryAn adapter to allow you to mount your 65mm spindle in a 3.5 (3 1/2, or 89mm) inch router mount (Bosch, Makita DeWalt, Ryobi, Draper). Skirt is part of the STL - for better adhesion and less warp.InstructionsUses 3x 45mm M3 cap head screws to tighten. The part is 80mm tall. PLA, 2mm perimeter and around 30% infill works great - light and strong. 0.2mm layer height means you'll have 3 skirt layers (it's 0.6mm). The skirt should snap off easily. Print 5-10 degrees hotter than usual just to maximise inter-layer adhesion, as tightening the screws really stresses the layers. The skirt is 0.6mm, and is part of the overall height so it's not a raft.

Loading comments...

Loading prints...

3 1/2 inch (89mm) to 65mm CNC Spindle adapter sleeve

likes
1 collection
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

View 3D
CNC_mount_to_Spindle_adapter__4__4.stl
STL Model
235.3 KB
File size
Free download - login required
Downloaded: 42 times
