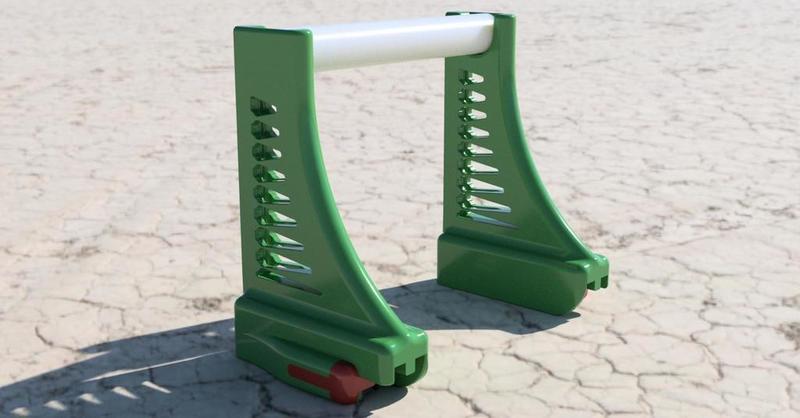

Lulzbot Taz 4 or 5 top Filament spool holder
Free
SummarySpool holder for top rail of Lulzbot Taz 4 or 5 or any printer with a 20mm rail. files include 2 versions. Version 1 does not have a rail lock. version 2 utilizes a lock key to secure the holder to the rail. no screws or bolts required. i have included a files for spool rod but a 1/2" pvc cut to 156.5 mm works also. Simpler solid version without inctricut cutouts can be found at http://www.thingiverse.com/thing:1343314 File Descriptions: filholder_Setwithrod : full set of version 2 with a spool rod filholder_Setnorod : full set of version 2 without spool rod sideA_V2 : single piece version 2 ( Side A ) SideB_V2 : single piece version 2 ( Side B ) SideA_key_V2 : single piece version 2 ( Side A lock key ) SideB_key_V2 : single piece version 2 ( Side B lock key 'same as side A' ) rod : single piece ( spool rod ) set_V1 : Set of version 1 " no key locks " sideA_V1 : single piece ( Version 1 Side A ) SideB_V2 : single piece ( Version 1 Side B )Print SettingsPrinter Brand: LulzBotPrinter: TAZ 5Rafts: NoSupports: YesResolution: .2Infill: 15 percentNotes: supports only needed in rod notch when printed in the default orientation with flat side down.Post-PrintingTime Lapse printTime lapse print

Loading comments...

Loading prints...

Lulzbot Taz 4 or 5 top Filament spool holder

like
2 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

10 downloadable files:

View 3D
sideB_V1.stl
STL Model
~1-5 MB
File size
View 3D
sideA_V2.stl
STL Model
~1-5 MB
File size
View 3D
sideA_V1.stl
STL Model
~1-5 MB
File size
View 3D
SideB_V2.stl
STL Model
~1-5 MB
File size
View 3D
SideB_key_V2.stl
STL Model
~1-5 MB
File size
View 3D
rod.stl
STL Model
~1-5 MB
File size
View 3D
SideA_key_V2.stl
STL Model
~1-5 MB
File size
View 3D
filholder_Setwithrod.stl
STL Model
~1-5 MB
File size
View 3D
filholder_Setnorod.stl
STL Model
~1-5 MB
File size
View 3D
set_V1.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 48 times
