support for PTFE tube
Free

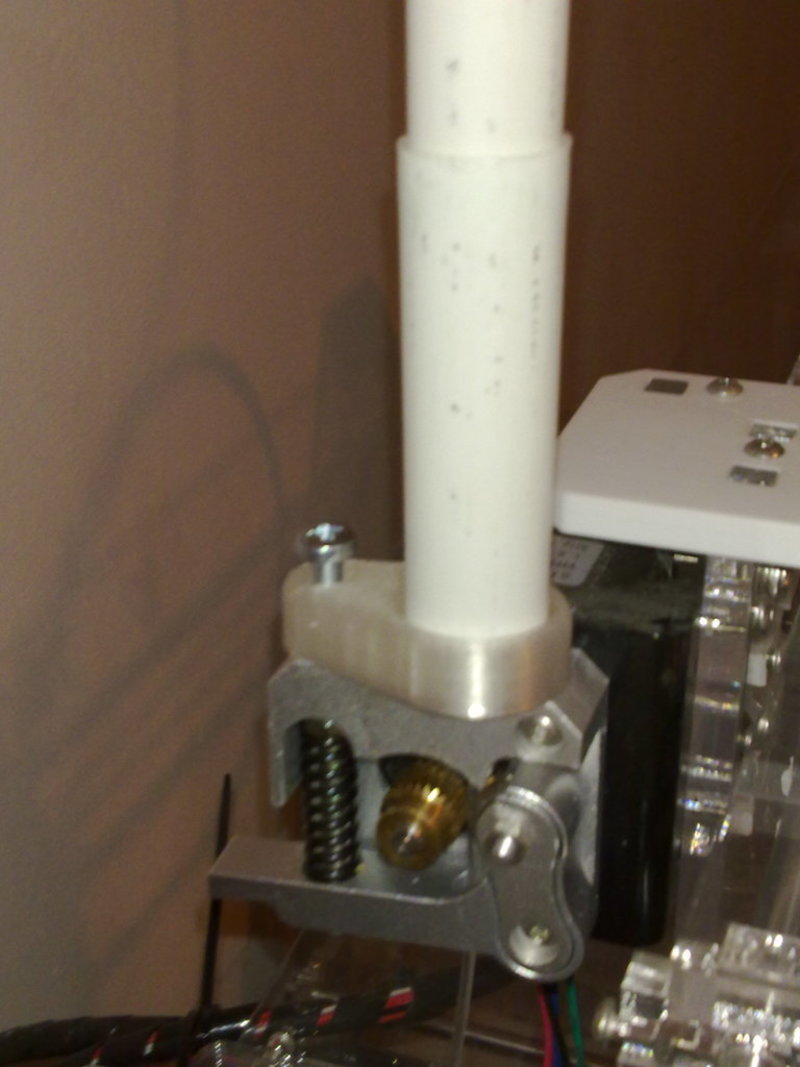

SummaryAfter many times of filament changes, I notice that when I introduce filament in the bowden extruder it was getting stuck into it, but this was the fitting fault. When printing I notice a strange noise at drive gear when it was trying to push filament in PTFE tube. One possible cause was clogging, but after I cleaned the extruder the noise continued. Then I saw to others 3d printers how it makes a nice curved shape not like an spline that I had had. By introducing this support, the filament stays in an good position and filament easily forwards to extruder and never block. Also, I've changed the size of filament diameter from 1.75 to 1.67 in slicer software after it was measured with a caliper. I've made two versions, one for connecting with a tube marker of 18 mm diameter and the second one entirely of filament.Print SettingsPrinter Brand: RepRapPrinter: Prusa I3Rafts: NoSupports: NoResolution: 0.2Infill: 30

Loading comments...

Loading prints...

support for PTFE tube

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
support_filament_tube.STL
STL Model
196.0 KB
File size
View 3D
support_filament_tube_long.STL
STL Model
201.0 KB
File size
Free download - login required
Downloaded: 36 times
