Belt Clamp + Tensioner
Free
Belt Clamp + Tensioner - Thumbnail 1 Belt Clamp + Tensioner - Thumbnail 2 Belt Clamp + Tensioner - Thumbnail 3

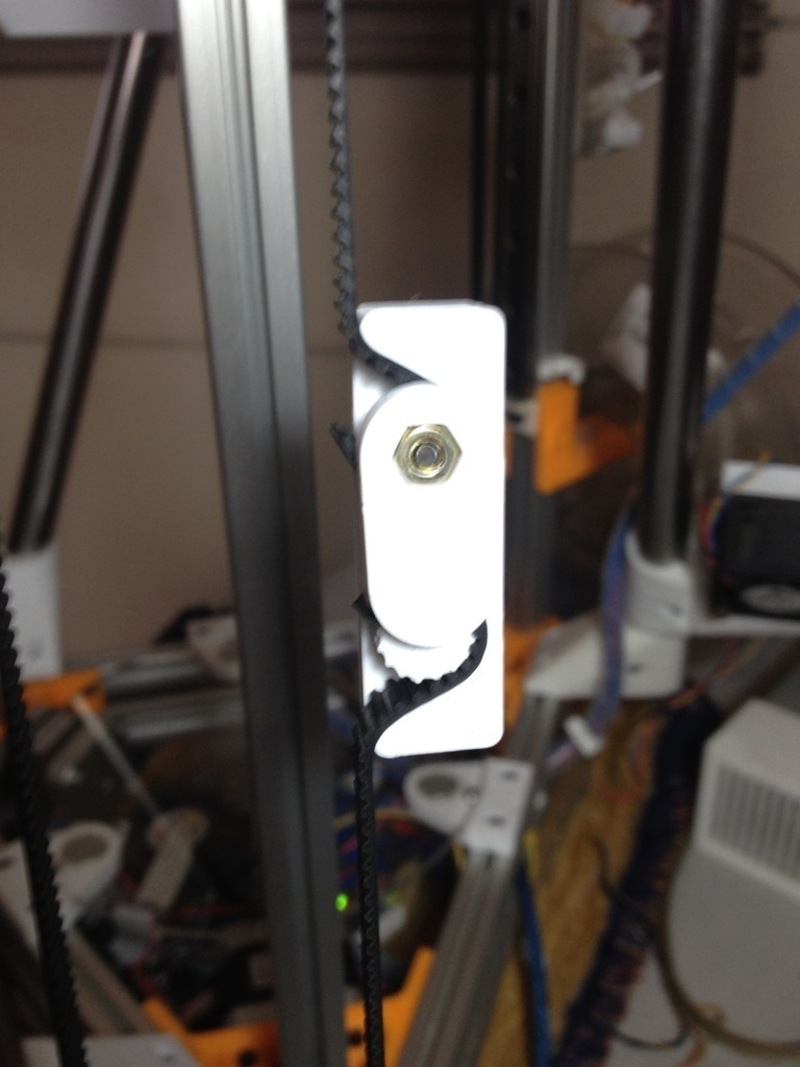

SummaryBelt Clamp with integrated Tensioner for GT2 belts Thanks to JC Doll with his algorithm for generating toothed pulleys as belt clips. http://www.thingiverse.com/thing:117987 OpenSCAD file included for your customization M3 x 12mm allen cap screw x1 M3 nut x 1Print SettingsRafts: NoSupports: NoResolution: 0.20Infill: 50Notes: 3 perimeters. The smaller the nozzle, the better.

Loading comments...

Loading prints...

Belt Clamp + Tensioner

likes
3 collections
Tags:
boksbox by boksbox
Download Files
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
tensioner.stl
STL Model
318.0 KB
File size
View 3D
body.stl
STL Model
348.4 KB
File size
Free download - login required
Downloaded: 82 times
