Pencil Newton
Free

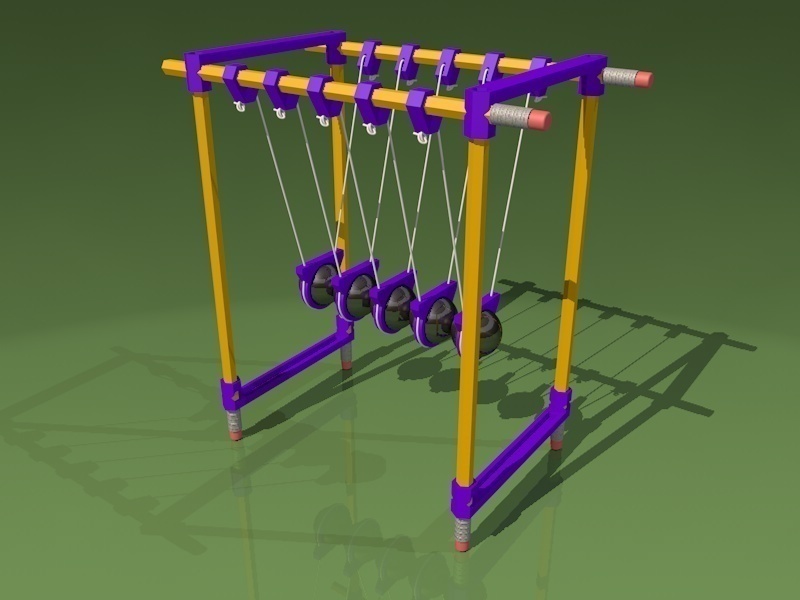

SummaryA classic Newton's Cradle that uses 4 pencils to reduce the amount of plastic required. Print 5 slings, 5 hangers and 4 supports. Use monofilament or string to hang the slings from the top rails. The slings are sized for a 1" ball bearing, adjust as needed for what size you use. When assembling make sure the erasers are on the bottom of the assembly, this will keep it from moving when it is in action. You can use tape or glue to hold the top braces and hangers in place. I recommend glueing the ball bearings in the slings, the shock can pop them out if they are not tight.Print SettingsPrinter Brand: MakerBotPrinter: MakerBot Replicator Z18Rafts: Doesn't MatterSupports: Doesn't MatterResolution: .2Infill: 10%

Loading comments...

Loading prints...

Pencil Newton

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

3 downloadable files:

Support.stl
STL Model
~1-5 MB
Est. size
Sling.stl
STL Model
~1-5 MB
Est. size
Hangers.stl
STL Model
~1-5 MB
Est. size
Free download - login required
Downloaded: 68 times
