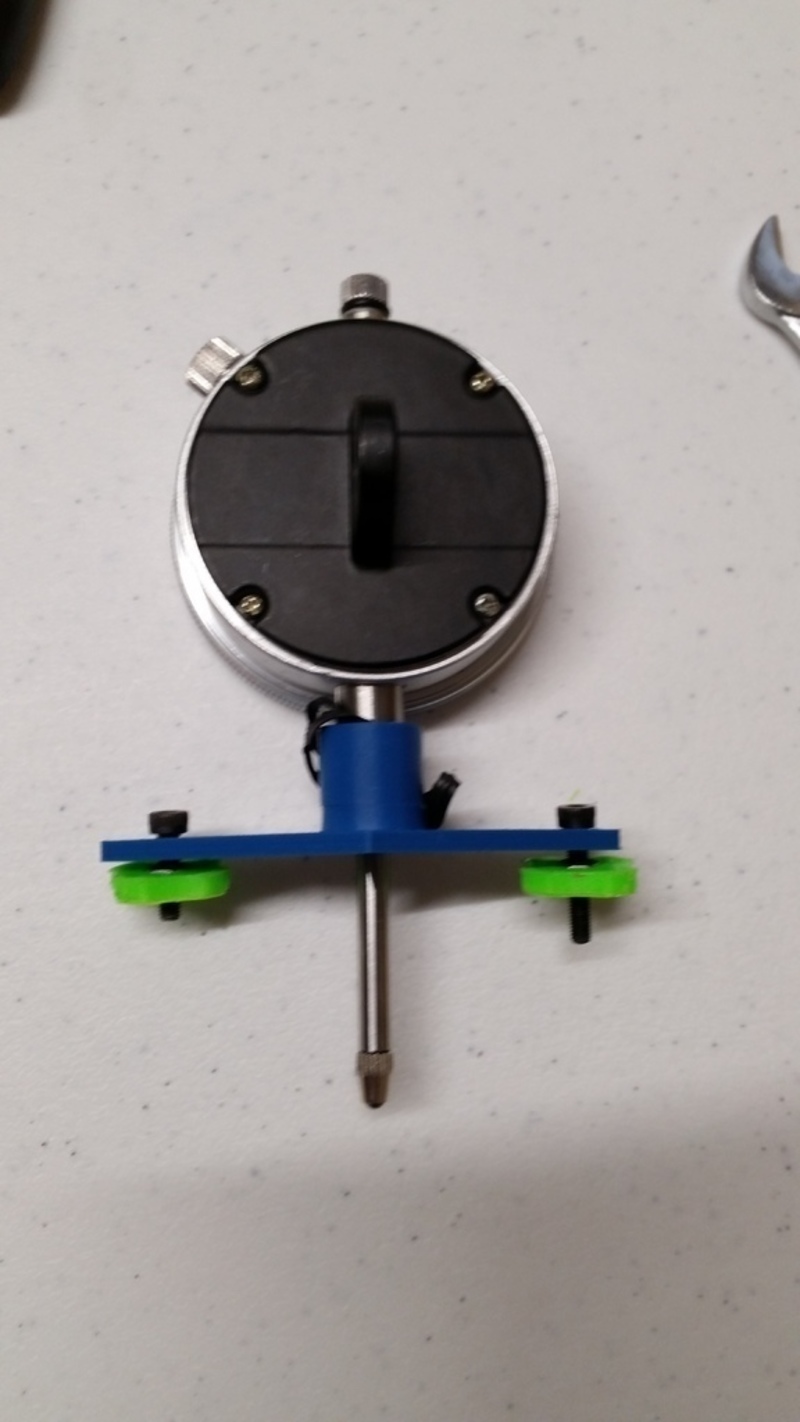

Mk7 Dial Gauge Mount
Free
SummaryMount a dial Gauge inside your Thing-o-Matic so leveling the print bed is easy. Mounts to the Mk7 extruder plate.InstructionsThis is designed to be used with this dial indicator (http://www.amazon.com/gp/product/B000NPPBVK?psc=1&redirect=true&ref_=oh_aui_detailpage_o00_s00). The clearance hole is 6 mm, the sleeve is 11 mm. Shim in the dial indicator to get a tight-fit. I used a twisty-tie. Use some of your favorite M3 nut adapters and m3 screws to attach it to the plate.

Loading comments...

Loading prints...

Mk7 Dial Gauge Mount

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

1 downloadable file:

View 3D
DialGaugeHolder.STL
STL Model
192.2 KB
File size
Free download - login required
Downloaded: 28 times
