Ninjaflex Drive Mod for Mk8 V7 Extruder upgrade
Free

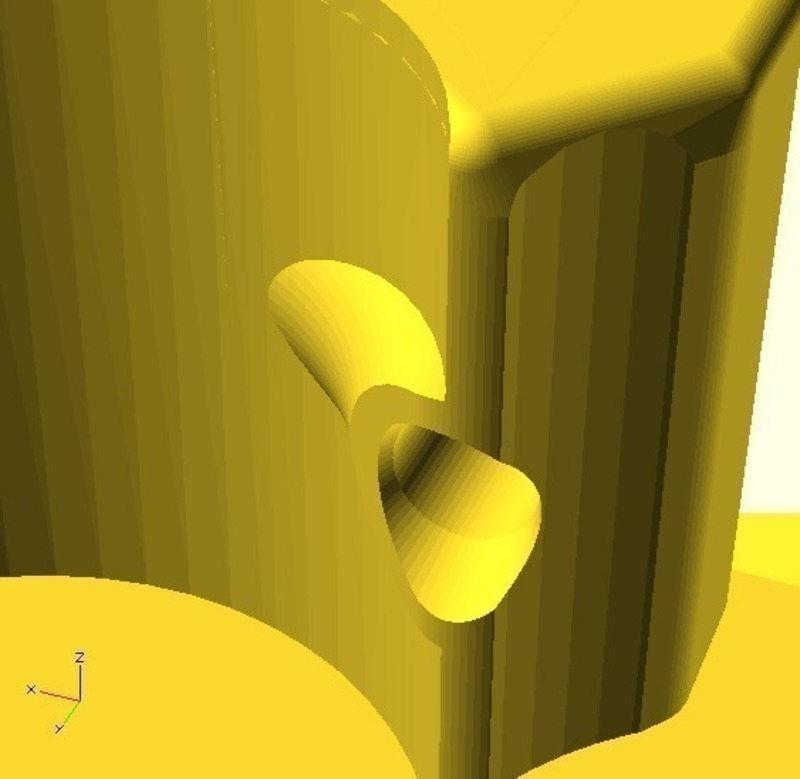

SummaryModified whpthomas' excellent Replicator 2 Extruder Upgrade thing: (http://www.thingiverse.com/thing:42250) to add Support for flexible filament for the entire path to the exgtruder Including a conic guide to the aluminum block, and a bump out for the gap in the drive gear, to prevent NinjaSuck. This preserves the rest of the design, including the clever built in support.InstructionsPrint solid, left and right versions attached. Add the arms and enjoy the awesomeness. This mod has been working like a champ now, printing Ninjaflex parts. Depending on how well your printer is tuned, you might need to drill out the holes, slightly. You want a close fit, but not too tight on the filament. Enjoy

Loading comments...

Loading prints...

Ninjaflex Drive Mod for Mk8 V7 Extruder upgrade

likes
1 collection
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

5 downloadable files:

View 3D
NinjaPin.stl
STL Model
204.5 KB
File size
View 3D
NinjaDriveArmLeft.stl
STL Model
4.5 MB
File size
View 3D
NinjaDriveArmRight.stl
STL Model
4.5 MB
File size
View 3D
NinjaDriveBaseRight.stl
STL Model
5.9 MB
File size
View 3D
NinjaDriveBaseLeft.stl
STL Model
6.0 MB
File size
