Summary

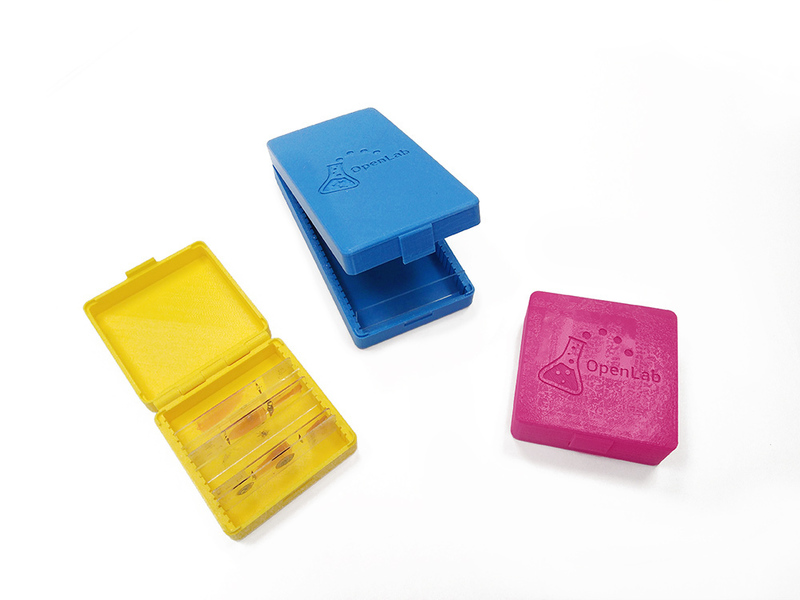

Carrier of standard microscope samples (76x26x1mm).
This model is part of the OpenLab proyect, more info and source files at OpenLab Github Repo
Author: Ángel Larrañaga Muro (AngelLM)
Print Settings
Printer: Witbox 2
Rafts: No
Supports: No
Resolution: 0.2 mm
Infill: 20%
Post-Printing
Assembly
To assemble both parts together insert a piece of 1.75mm diameter filament through the hinges.
Customize your own carrier
This model is parametric, so you can modify it to hold the number of samples you want. Just this easy as shown at the video above! All you need is FreeCAD, a free, open source and multiplatform 3D modeler.
Loading prints...
Parametric Sample Carrier
Creative Commons Attribution-ShareAlike
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.
Licensed under CC BY-SA
