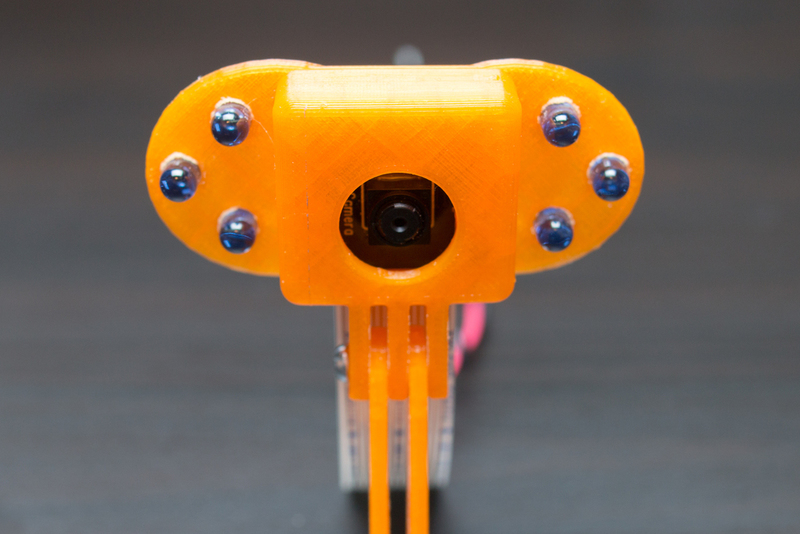

SummaryThis is a new back cover for the Raspberry Pi camera case (from http://www.thingiverse.com/thing:92208) which allows 6 5mm LEDs to be attached to the camera for illumination. Great for using with IR LEDs and the Pi NoIR camera for monitoring in darkness. The build shown in the photos uses the following components: This back cover model. The front cover CameraFrontBottom-fingers.stl file from: http://www.thingiverse.com/thing:403712 Two links, link.stl, from: http://www.thingiverse.com/thing:247590 The fingerclip base, fingerclip.stl, from: http://www.thingiverse.com/thing:403712 The LEDs shown are 6x high power IR LEDs: https://www.adafruit.com/product/387 As shown the LEDs are meant to be driven by 5 volts and are wired as two independent sets of 3x LEDs in series. The anode (longer leg) of a LED is directly soldered to the adjacent LED cathode (shorter leg). A 5V voltage source (like from the Raspberry Pi 5V output) is applied to the anode of the top LED and a 24 ohm 1/4 watt resistor is soldered in series from the cathode of the bottom LED down to ground. This will drive each set of 3x LEDs with about ~30-50mA of current for a total of ~60-100mA for both sets. Do not omit the resistors! You can increase the resistance value to lower the current and dim the LEDs, but be careful decreasing the resistance as it will pull more current and potentially damage the Pi or burn out the resistors. Designed by Tony DiColaPrint SettingsRafts: Doesn't MatterSupports: Doesn't MatterNotes: When printed in PLA the tolerances for the LED holes should provide a snug press fit. Use a file if the holes are too small, or adjust the source model in Tinkercad: https://www.tinkercad.com/things/3aMExisYZmM?display=7yBckVlmHwc
