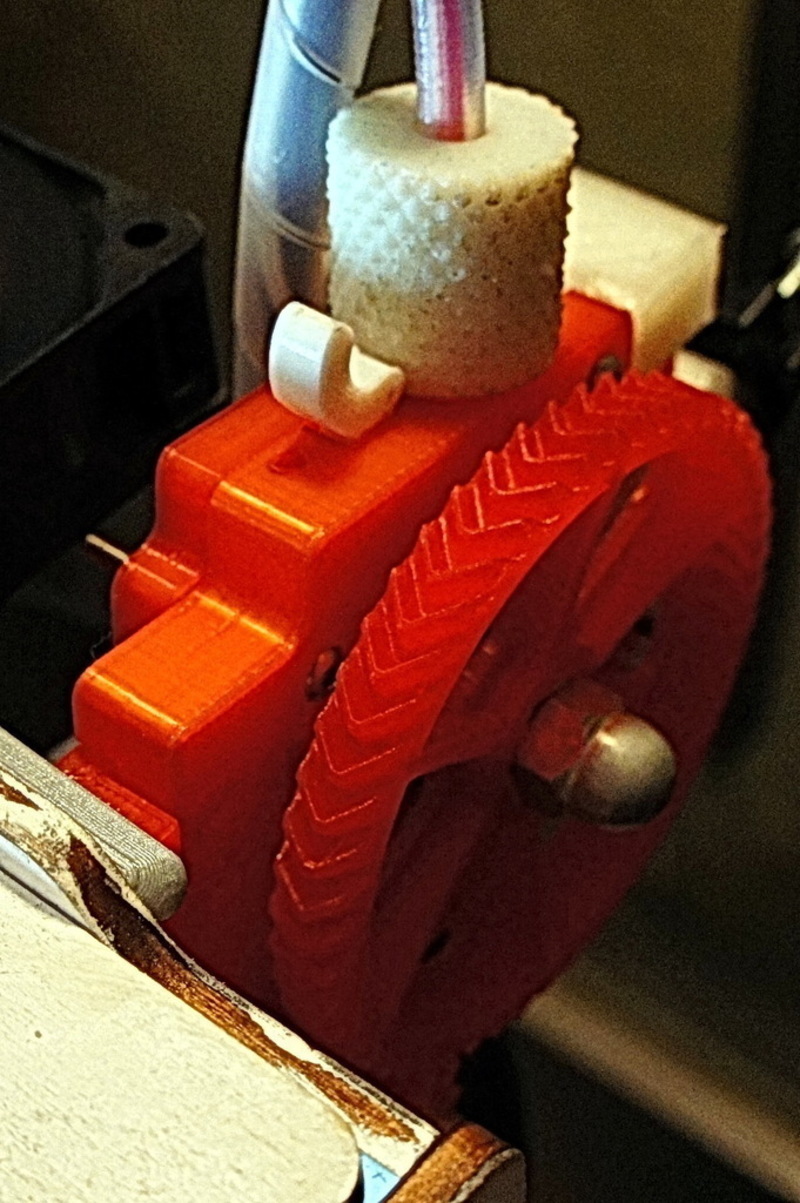

HerringBone Gear for H3 Extruder adaption for Ultimaker
Free
SummaryI've been much happier with the H3 feeder unit over the original but it still needed some improvements. This is a drop in replacement gear which (i my opinion anyways) is much much more quiet then the both the original and the H3 Gear,. My original source for the herringbone gear was http://www.thingiverse.com/thing:40334 but I needed to increase the size by 15% of both gears so that it would fit into the larger area of the H3 feeder.InstructionsI used 1mm settings with 75%. leaves enough space for the oozing to overflow into.

Loading comments...

Loading prints...

HerringBone Gear for H3 Extruder adaption for Ultimaker

likes
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

2 downloadable files:

View 3D
BigGear_2B15.stl
STL Model
2.4 MB
File size
View 3D
smallGear_2B15.stl
STL Model
424.3 KB
File size
Free download - login required
Downloaded: 37 times
