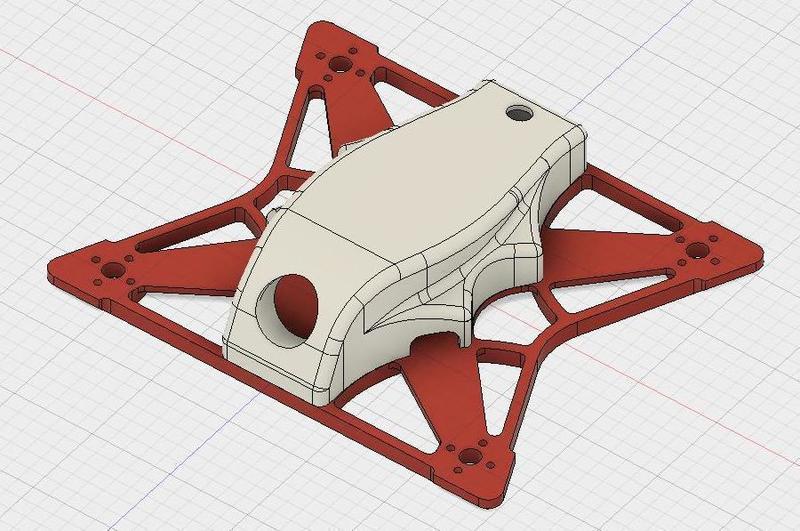

SummaryThis is the Comet 150 Micro Quad Copter.
It is designed around 3" props and 1306 motors, and is intended to use common multirotor electronics and fpv gear.
Suggested setup:
Flight Controller: Naze32, CC3D, MotoLabs Tornado, etc. (30.5x30.5mm mounting)
Power Distribution Board: Matek PDB, ATAS Sphere PDB, etc.
ESCs: Little Bee 20A, DYS XM20, etc (BLHeli)
Motors: 1306 sized, 3100kv-4100kv
Battery: 450-850mAh 3S or 4S
VTX: Hawkeye or UBAD 200mW with SMA extension
FPV Cam: 28x28mm 600TVL Board Cam
Hardware: M3x8mm self tapping (for attaching Canopy), M2.2x6mm self tapping (for attaching FPV Cam to Canopy), Nylon M3 screw/nuts/standoffs (for FC/PDB stack)Print SettingsPrinter Brand: PrintrbotPrinter: Simple BlackRafts: NoSupports: YesResolution: .2Infill: 30%Comet 150 Maiden Flight
