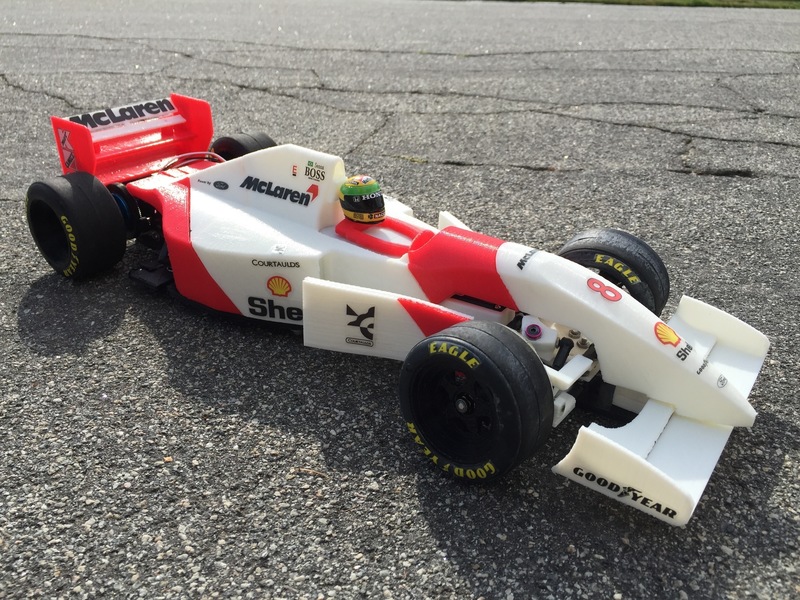

RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car

Free

RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car - Thumbnail 1

RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car - Thumbnail 2

RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car - Thumbnail 3

RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car - Thumbnail 4

RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car - Thumbnail 5

RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car - Thumbnail 6

RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car - Thumbnail 7

RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car - Thumbnail 8

RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car - Thumbnail 9

RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car - Thumbnail 10

A tribute to Ayrton Senna who died 22 years ago May 1, 1994.

Great Article by Simplify3d on the car

https://www.simplify3d.com/3d-...

3ders

http://www.3ders.org/articles/...

3dprint

https://3dprint.com/132295/for...

Aggressive driving

https://www.youtube.com/watch?...

https://www.youtube.com/watch?v=LN48yEU7cEs

https://www.youtube.com/watch?v=4yQnyLyVDHA

This car honors arguably the greatest Formula One driver ever, three-time world champion Ayrton Senna, and his iconic 1993 McLaren MP-4/8 which he drove under both the McLaren/Marlboro red and white livery. If you have never heard of Ayrton Senna I highly recommend watching the documentary Senna (also check out the movie Amy by the same director)–it’s an amazing story of an amazing man who inspired the nation of Brazil and the world with his amazing driving. You can also watch this quick clip that Top Gear did a few years ago about Senna.

https://vimeo.com/89217406

I always loved this car. It is completely new car, an evolution of the RS-01 chassis that I built last month—this is the first unique car to emerge from the RS-01 chassis family and the first to be released… Being that it’s Senna’s car, I’m sure it will be outstanding in the rain, and do unworldly pole qualifying laps. :)

RS-01 chassis information can be found here: https://pinshape.com/items/193...

http://www.thingiverse.com/thi...

I loved making this car; I hope that you enjoy printing and building it just as much.

-Brett Turnage

[email protected]

Part List and Manual are included with full list of parts.

Stickers: can be found on eBay

Senna RC Helmet (if using body): eBay

Rainlight: 5mm Flash LED light – Red (F1 Tail Light)

Tires: F104 rubber tires (F&R)

Shocks:

front: (2) 55mm shocks with (2) 65mm m3x65 turnbuckles.

rear: (2) 55mm shock, springs removed for damper and 7x19mm spring (I cut a spring down to 19mm). You can choose your spring rate to find the correct spring for your application.

Rear Axle and Motor Mounts:

Tamiya F104 C Parts 51379 (motor mounts and rear diffuser)

Tamiya F104 54158 (Aluminum Diff Housing set)

Tamiya RM-01 Carbon rein L Parts- Links 2pc RM01 / F104 V2

F104 rear shaft--- they come in aluminum, steel, and carbon fiber

... full list of parts inside the pdf parts list.
