Headless Gourd-shaped Ukulele in 8 pieces
Free

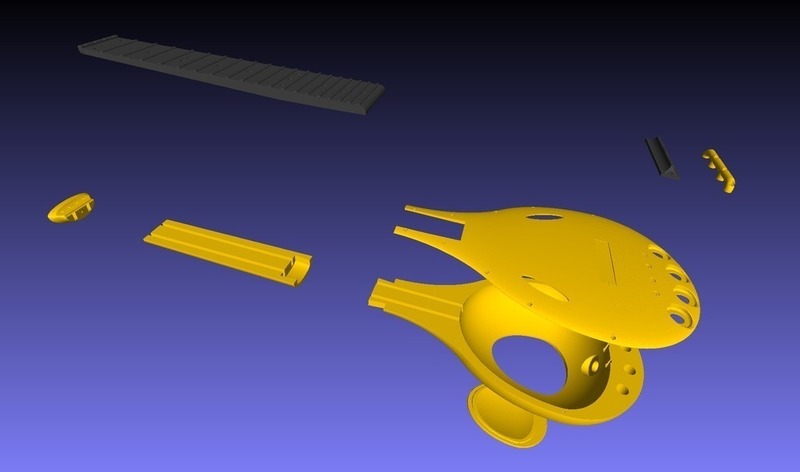

SummarySoprano Gugulele An example of 3D model generated with my Gugulele OpenSCAD script... Decorative headless design Double rectangular through-body spines Double oval sound holes Banjo style planetary tuners Hole in tail for 1/4" pickup 8 pieces assemble with M1.6 socket head screws This is the successor to my earlier designs: Headless Soprano Headed Soprano. However, I haven't gone around to print it yet, but if you get one to print and assembled successfully, please let me know :-) Third Party Parts Spine/rods e.g. http://www.acpsales.com/.125-x-.325-Rectangular-Rod.html Banjo Tuners e.g. http://www.amazon.com/dp/B018AWABJ4/, http://www.ebay.com/itm/361528177703 Screws (M1.6x8) for body, bridge, and string-guide e.g. http://www.amazon.com/dp/B00XP4ORF2 Screws (M1.6x12) for head, and fretboard long screws e.g. http://www.amazon.com/dp/B00XP4OD5Q Screws (M1.6x3) for back cover, and fretboard short (mid-line) screws e.g. http://www.amazon.com/dp/B00XP4PHUG Transducer pickup with 1/4" jack e.g. http://www.amazon.com/dp/B002C741BI

Loading comments...

Loading prints...

Headless Gourd-shaped Ukulele in 8 pieces

likes
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

9 downloadable files:

View 3D
Soprano_H2R2X2S6T1_8pc.stl
STL Model
~1-5 MB
File size
View 3D
Soprano_H2R2X2S6T3P1_1of8_Body.stl
STL Model
~1-5 MB
File size
View 3D
Soprano_H2R2X2S6T3P1_2of8_Backcover.stl
STL Model
~1-5 MB
File size
View 3D
Soprano_H2R2X2S6T3P1_3of8_Neck.stl
STL Model
~1-5 MB
File size
View 3D
Soprano_H2R2X2S6T3P1_4of8_Head.stl
STL Model
~1-5 MB
File size
View 3D
Soprano_H2R2X2S6T3P1_5of8_Fretboard.stl
STL Model
~1-5 MB
File size
View 3D
Soprano_H2R2X2S6T3P1_6of8_Soundboard.stl
STL Model
~1-5 MB
File size
View 3D
Soprano_H2R2X2S6T3P1_7of8_Bridge.stl
STL Model
~1-5 MB
File size
View 3D
Soprano_H2R2X2S6T3P1_8of8_Stringguide.stl
STL Model
~1-5 MB
File size
