V-Slot universal plate "minified" STL
Free

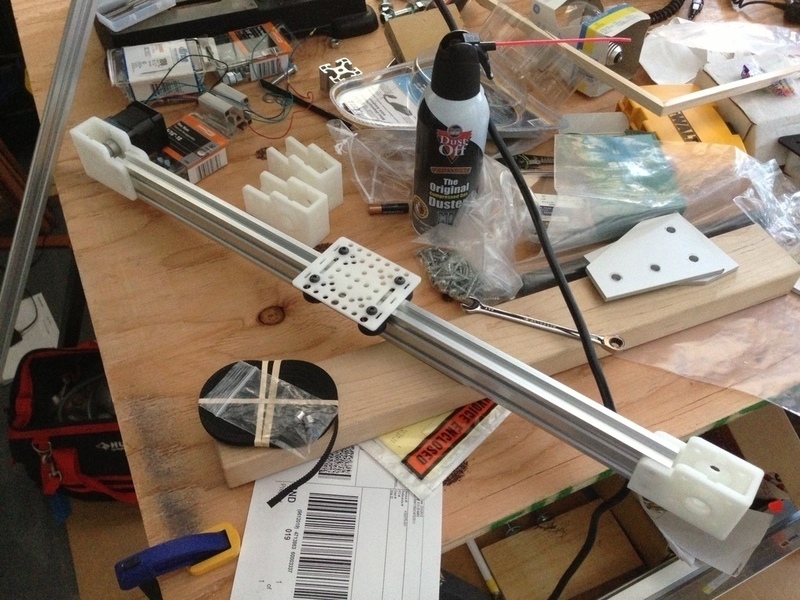

SummaryDidn't need it to be as big as the standard universal plate, so I made a smaller one. I installed it on the 20x40 V-Slot extrusion along with my modified motor mount, and it looks pretty good so far. I'll add a fully assembled picture once I get the parts to screw everything together. I don't have tee nuts yet, so I might just drill holes through the extrusion to attach them for now.

Loading comments...

Loading prints...

V-Slot universal plate "minified" STL

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

1 downloadable file:

View 3D
vslot_universal_plate_mini.stl
STL Model
3.6 MB
File size
Free download - login required
Downloaded: 50 times
