Carrier for OpenWorkbench Logic Sniffer
Free

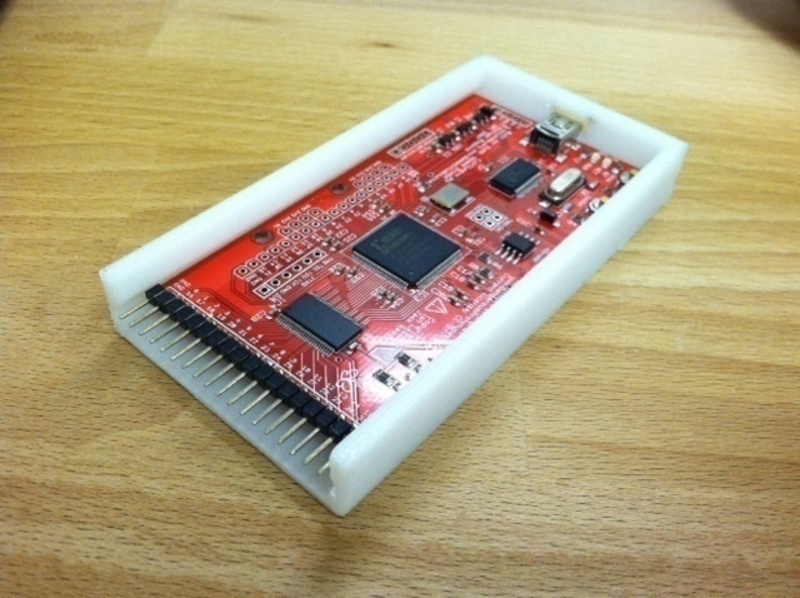

SummaryI didn't have time to laser cut the cases that are here on Thingiverse, so I printed one instead. Fitment is perfect -- the board is snug when you slide it in, but not too snug. I made a mistake on the first print, and the hole for the mini USB connector is too small. I had to open it up all of the way so that the plug can mate closer to the board. The design also precludes any need for support material, since the hole for the mini USB plug is open, and I have a 30 degree angle in the slot that holds the board in place.

Loading comments...

Loading prints...

Carrier for OpenWorkbench Logic Sniffer

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

View 3D
open_workbench_logic_sniffer_case_branded.stl
STL Model
1.2 MB
File size
Free download - login required
Downloaded: 46 times
