Cyclone Dust Collector (Remix)
Free

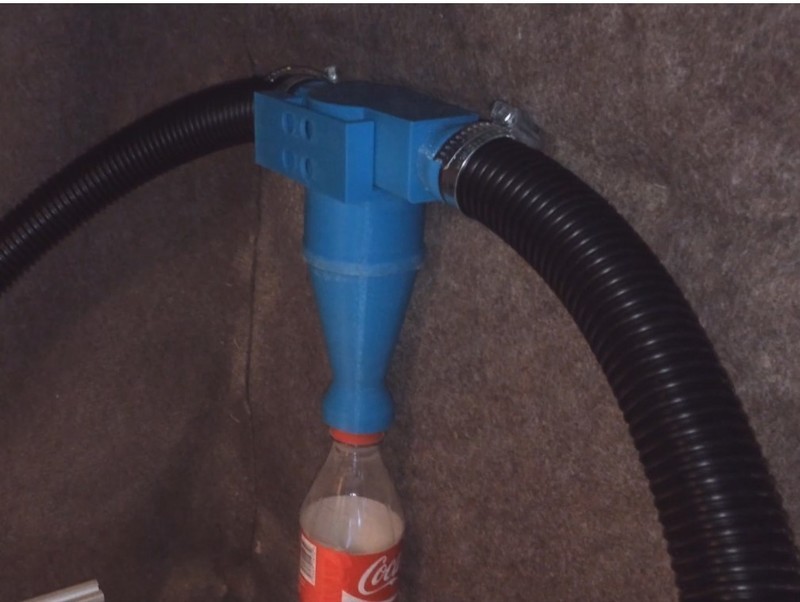

SummaryVery good design but i make some changes for my needs :) The holes from the base are now same and i make 2 adapters to fit in. At the bottom i change the hole so i can screw a bottle of coca cola. Not yet tested but i guess it will work, i will inform you if not :). Thanks a lot FEMA 28/03/2016 Update A video of testing it This is an video testing it. It works really good. A wall mount to fit it.Print SettingsPrinter: SmartRapCoreRafts: Doesn't MatterSupports: NoResolution: 0.25Infill: 60Notes: 3 Perimeter layers I want it to be strong enough. Support no need but maybe is little messy at the base holes, nothing important but you will need to clean it a little.

Loading comments...

Loading prints...

Cyclone Dust Collector (Remix)

likes
5 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

4 downloadable files:

View 3D
Cyclone-Adaptor.STL
STL Model
45.4 KB
File size
View 3D
Cyclone-Bottom.STL
STL Model
329.8 KB
File size
View 3D
Cyclone-Base.STL
STL Model
395.9 KB
File size
View 3D
Wall_Mount.STL
STL Model
75.1 KB
File size
Free download - login required
Downloaded: 176 times
