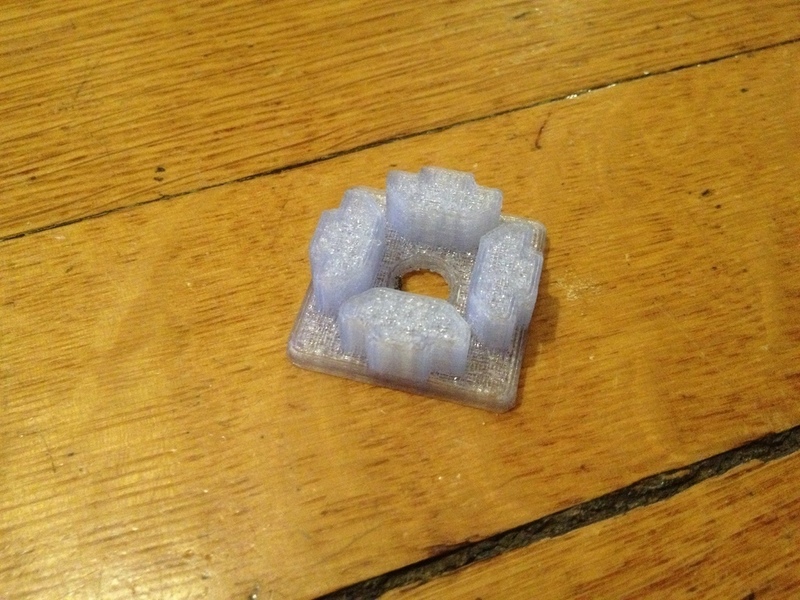

end cap for 3030 extrusion
Free
SummaryThis is an end cap for a misumi style 30x30 t-slot extrusion.InstructionsThere are two STL files, one with a hole, one without. More importantly, there is an openscad script to create your own. There is a variable at the beginning called "undersize" that you can use to adjust the fit for your printer and extrusions. It would also be pretty easy to modify it for different sized extrusions. I'm not sure what the slot geometry is like for other manufacturers, I don't know if it will work for them.

Loading comments...

Loading prints...

end cap for 3030 extrusion

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
3030_cap.stl
STL Model
39.6 KB
File size
View 3D
3030_cap_with_hole.stl
STL Model
48.1 KB
File size
Free download - login required
Downloaded: 25 times
