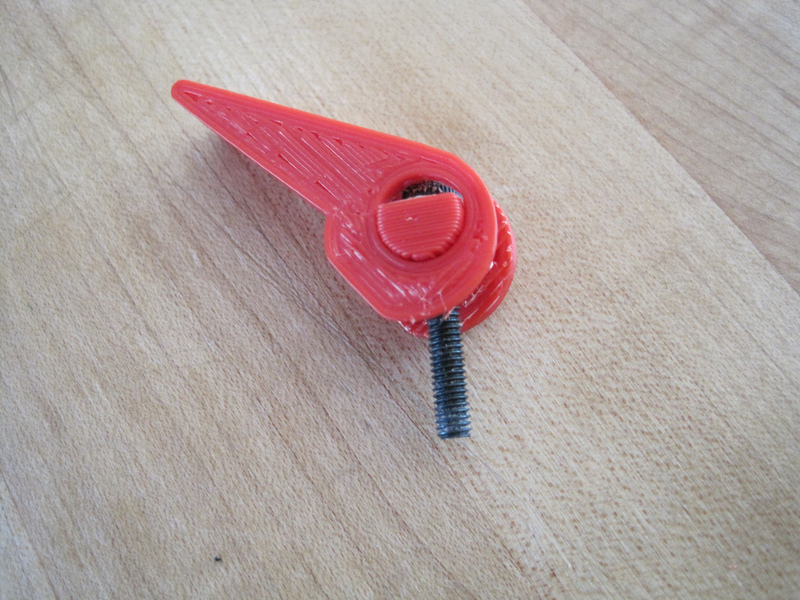

Quick Release Lever for 4mm bolt
Free
SummaryThis is a quick release lever that I designed for my filament drive ( http://www.thingiverse.com/thing:7113 ). It may also be useful elsewhere.InstructionsPrint the parts with support material on. There is an STL with both of the parts in it if you want to print them both at once. If not, you only need support for the lever. Remove the support material. Put the pin through the lever. Put a bolt through the pin and attach the bolt wherever it is supposed to go

Loading comments...

Loading prints...

Quick Release Lever for 4mm bolt

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

3 downloadable files:

View 3D
whole_quick_release.stl
STL Model
230.1 KB
File size
View 3D
quick_release.stl
STL Model
156.8 KB
File size
View 3D
quick_release_pin.stl
STL Model
72.9 KB
File size
