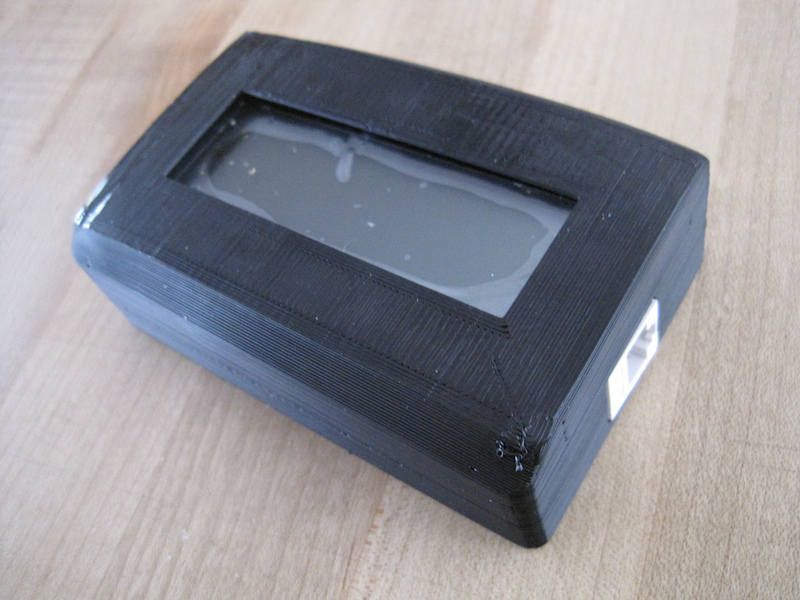

SummaryThis is a housing for the modtronix LCD screen. It has spot for a snap in RJ45 connector to allow you to connect a 4x4 modtronix keypad housed in http://www.thingiverse.com/thing:6335InstructionsThe RJ45 connector is a bit of a tight fit. You will probably need to clean up where the filament had to bridge the gap and you may have to remove a little material elsewhere (or you can modify the scad file to make it looser).
The cover should snap on but I haven't tested that yet. It may be too tight.
Loading prints...
Housing for modtronix LCD screen
