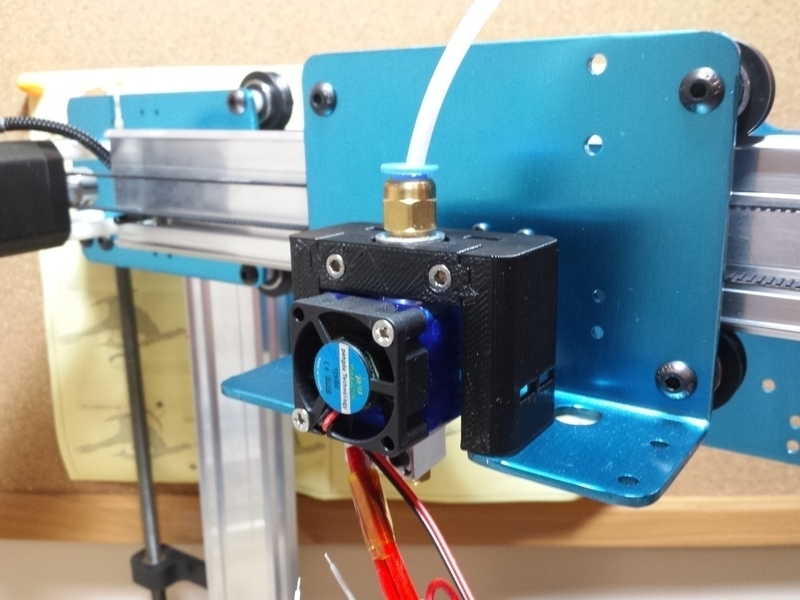

E3D Hotend Mount for ORD Hadron with Bowden Extruder setup
Free
SummaryFor the hardware use: 6 #6-32 Square nuts 6 #6-32 Socket cap screws x 3/4" long. The part is designed such that the nuts are a finger press fit into the rectangular holes and at just the correct depth so that once pushed in all the way they line up to the hole eliminating the need to worry about getting the screw started. Also the head of the socket head cap screws that secure the clamp in place are counter sunk for a nice clean finish.Print SettingsRafts: Doesn't MatterSupports: Doesn't Matter

Loading comments...

Loading prints...

E3D Hotend Mount for ORD Hadron with Bowden Extruder setup

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
hem001.stl
STL Model
186.6 KB
File size
View 3D
hem002.stl
STL Model
114.7 KB
File size
Free download - login required
Downloaded: 48 times
