Batmobile 2.84
Free

Settings for printing :

Layer Height : 0.04-0.08mm (do not exceed 0.1mm)

Shell thickness : 2.5mm

Bottom thickness : 2mm

Fill Density : 30% minimum

Print Speed : 60mm/sec

Printing Temperature (ABS) : 230+/-

Bed Temperature : 110+/-

Number of components to be printed (writing the number of multiple prints/pieces) :

Guns Big : 2

Dowel wheels : 8

Body Dowels : 8

Wheel-Body Connector : 5 (4 for wheels, 1 for the flame)

Total components : 20                Total Parts : 39

You may have to add some support structure for the 'Guns Big' and the 'BatMobile Left and Right' side of the body.

Attach the side body first to the main body, then put the 'spoiler' in and then join the front body.

Flame is detachable and can be of any color (red/orange/yellow/blue).

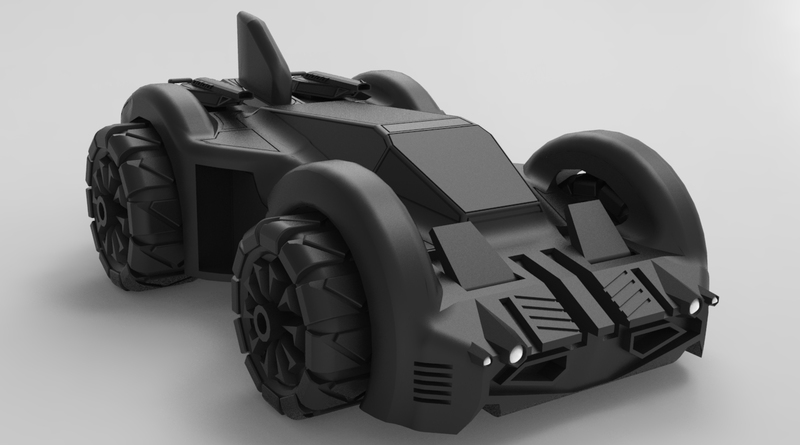

About the design : The whole design was to blend in 2 different attributes [ruggedness and aerodynamic]. the front 'spoilers' are inspired by 'Pagani Huayra' and the tail fin is important as if the car goes fast, it will help in maneuvering it at higher speeds.

The wheels, if you look closely, the treads have a pentagon shaped like Superman's logo outline except the 'S' , thus trying to portray that Batman can crush Superman! :D

Hope you like it :)
