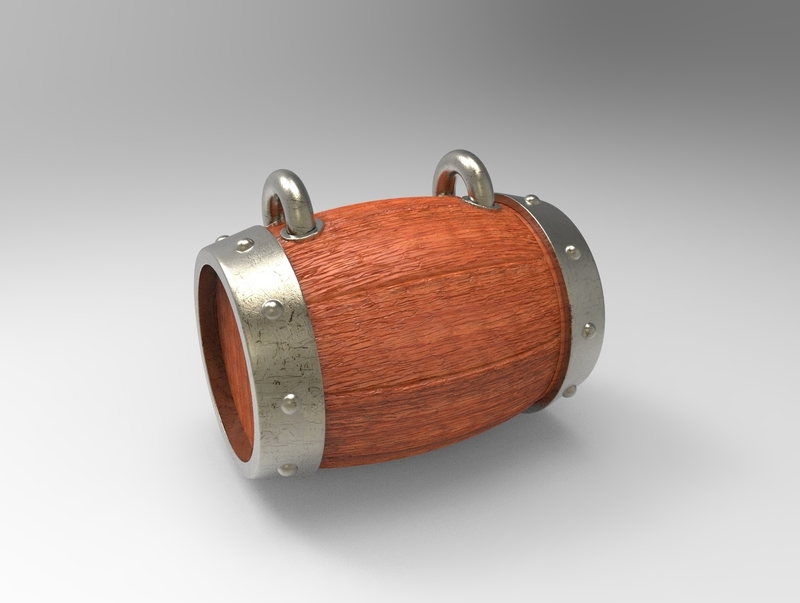

Bike storage keg
Free

Print settings:

  • PLA
  • 0.4 mm nozzle
  • 0.1mm (100 microns) layer height (less then that wont print the caps details)
  • No support needed
  •  15/20% infill is more then enough, if even necessary (I didn't print any part with infill and they look stiff)

Assembly

I've added an image with a basic schematic of the assembly.

All pieces are glued together except the lid of course ;) I've used Loctite 3090 but I think a good superglue should do the job.

Just one note, mind the pin/lock orientation on the caps and rings.

To get this model to its full potencial I recommend to use Wood/Cork fill for the body and caps, and copper fill for the rings and rims

Feel free to critique and/or suggest any change the can help the design.

Hope you guys have fun with it :D
