Beaglebone Black with CRAMPS cape case
Free

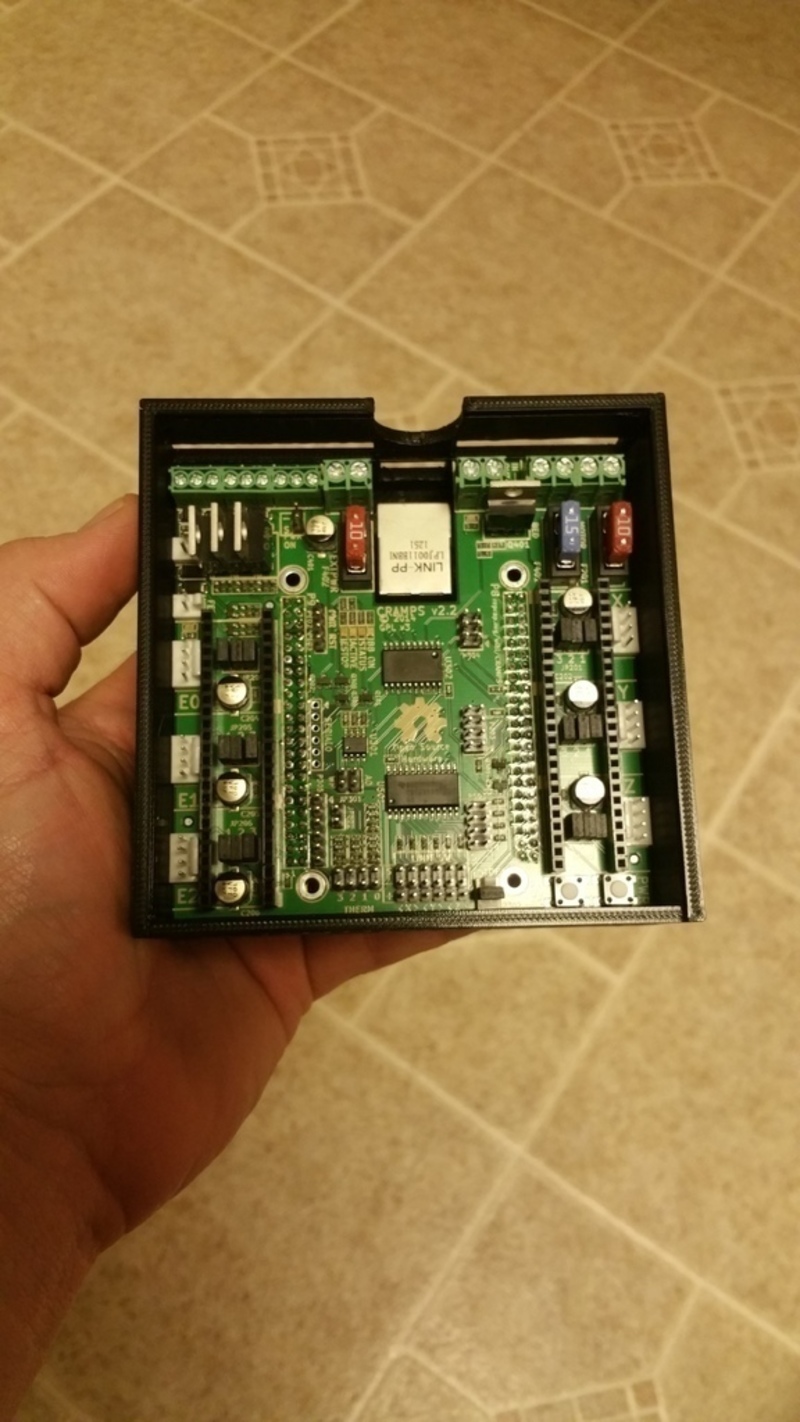

SummaryThis is my take on a case for the Beaglebone Black single board computer when it is outfitted with a CRAMPS cape. I have one of these setups on my delta printer and will soon have one on my Mostly Printed CNC machine (http://www.thingiverse.com/thing:724999) build. I have designed the so that it can be fitted with a standard 80mm brushless DC fan. The U shaped hole on one end is to route wiring through. I am also uploading the Freecad files for easy modding. Pointers on how I can improve my gawd-awful CAD skills are appreciated but complaints are not. It prints out well on my printer. Print SettingsPrinter: Custom Trestle Delta 3D printerRafts: NoSupports: YesResolution: .2Infill: 50 Notes: Infill percent shouldn't make a big difference but you should use supports. I printed mine using Cura with supports "Everywhere".How I Designed ThisFreecadDesigned in Freecad. Make model, slice model, print model, go back to Freecad and fix mistakes, repeat until close enough.

Loading comments...

Loading prints...

Beaglebone Black with CRAMPS cape case

likes
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

3 downloadable files:

View 3D
BBB-CRAMPScase.stl
STL Model
95.0 KB
File size
View 3D
BBB-CRAMPScaseLid.stl
STL Model
70.6 KB
File size
View 3D
BBB-CRAMPScaseStandoff.stl
STL Model
15.5 KB
File size
Free download - login required
Downloaded: 22 times
