Philips Eleva xray limit switch bumper
Free

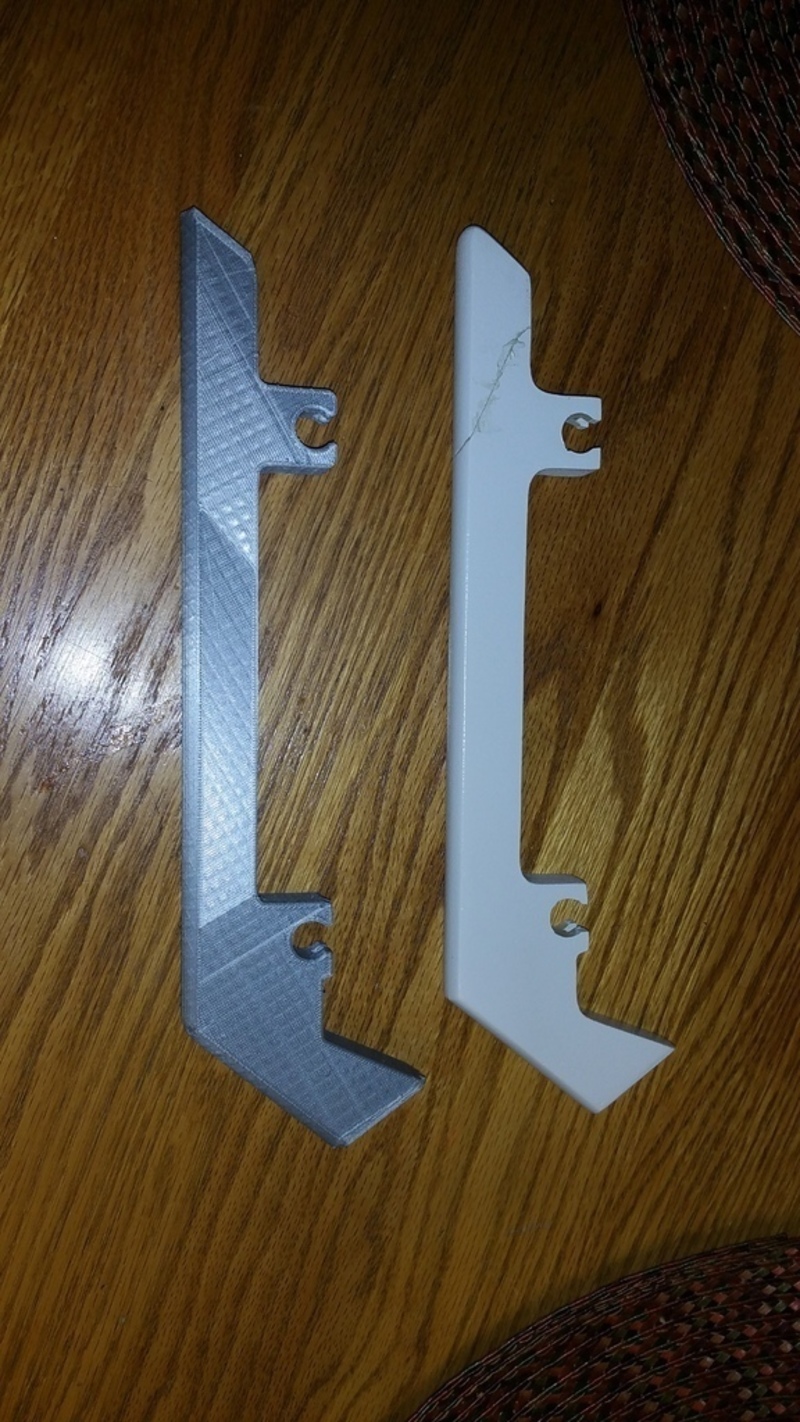

SummaryThis is a bumper that actuates limit switches on a Philips xray table. The white colored part is the broken original. The silver part is the one I recreated in FreeCAD and then printed on my delta. We put the printed part in the xray unit.Print SettingsRafts: NoSupports: YesResolution: 150 micronsInfill: 30%

Loading comments...

Loading prints...

Philips Eleva xray limit switch bumper

likes
0 collections
Tags:
aaron_diab by aaron_diab
Download Files
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

1 downloadable file:

View 3D
xrayBumper.stl
STL Model
26.9 KB
File size
Free download - login required
Downloaded: 23 times
