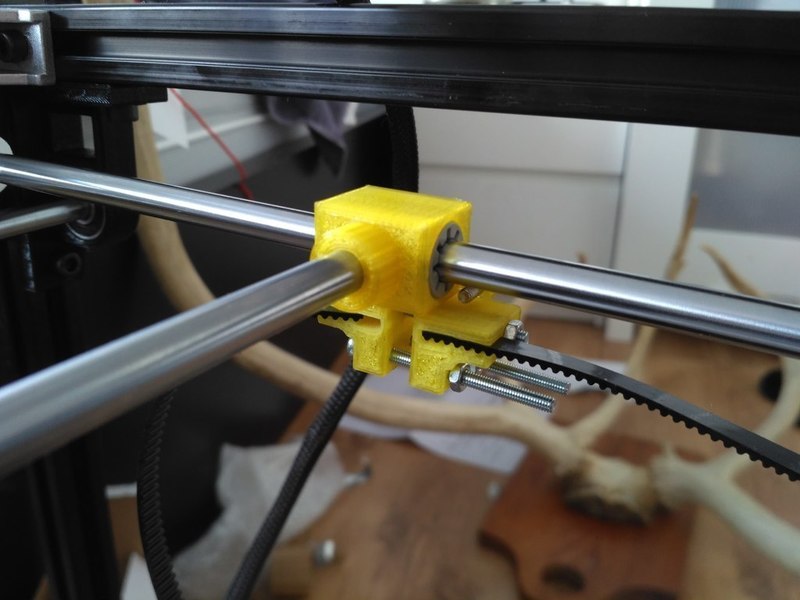

Cl-260 Ultimaker Max carrier and belt tensioner for LM8UU and Ig
Free
SummaryLeave a like! This is version 1.2, if there's any response (Likes, Comments) I will improve the design further ;) . It's designed for Igus DryLin (RJ4JP) but also fits LM8UU You need 1x M3x40 screw + nut (Important! Doesn't work without it!) 1x M3x30 OR M3x40 screw with nut (but also works without) 1x M3 screw which can be shorter, if it need to touch the endstop Object testet 0,15mm layer height, 0,5mm nozzle, 40% infill, 3 outside layers, Esun-PETG and works very good without support. Update History: V1.1 - added second arm for another end-stop-screw on the other side V1.2 - centered the belt holders to be in one line with the original pulleys, now one screw less necessary

Loading comments...

Loading prints...

Cl-260 Ultimaker Max carrier and belt tensioner for LM8UU and Ig

likes
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

2 downloadable files:

View 3D
Part_2_V1.2_Smoothened.stl
STL Model
98.6 KB
File size
View 3D
Part_1_V1.2_Smoothened.stl
STL Model
185.9 KB
File size
Free download - login required
Downloaded: 86 times
