Prusa I3 Steel 2.01 addon parts
Free

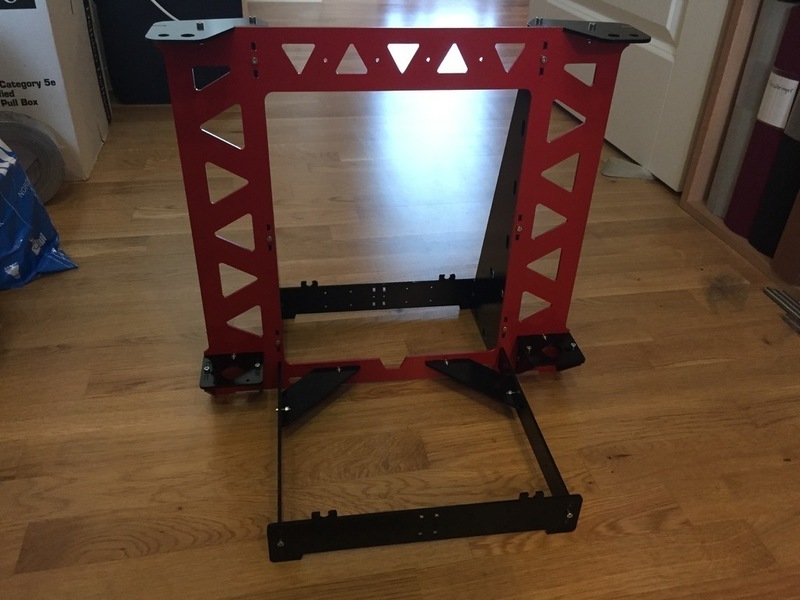

SummaryI made some parts to my new build of a Prusa I3 Steel 2.01. Most of the parts i´m using is this http://www.thingiverse.com/thing:1054909. But i want to use 8 mm leadscrews instead of M5 threaded rods for Z. I drilled a 9 mm hole in the X-idlers to let the leadscrew thru. Then i´m using my part Leadscrew_Antiwobble_Left and right to Z. At the top I bult a new top part thats center the leadscrew with a bearing. I also made som belt pullys to use normal 624 bearings to Y and X. The normal steel Y idler has a very big hole for the screw so i made som adapters to fit normal M4 bolts. I also made an extension plate for the extruder (http://www.thingiverse.com/thing:678089) without this extension the extruder crash in to the frame in top. Print SettingsPrinter: Prusa I3Rafts: NoSupports: NoResolution: 0,2Infill: 25%

Loading comments...

Loading prints...

Prusa I3 Steel 2.01 addon parts

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

8 downloadable files:

View 3D
X_BeltPully_half_624.stl
STL Model
~1-5 MB
File size
View 3D
Leadscrew_Antiwobble_right.stl
STL Model
~1-5 MB
File size
View 3D
Leadscrew_Antiwobble_Left.stl
STL Model
~1-5 MB
File size
View 3D
Y_BeltPully_half_624.stl
STL Model
~1-5 MB
File size
View 3D
Extruder_ext_CharlStruder.stl
STL Model
~1-5 MB
File size
View 3D
Z_Top_Holder_leadscrew_Left.stl
STL Model
~1-5 MB
File size
View 3D
Z_Top_Holder_leadscrew_Right.stl
STL Model
~1-5 MB
File size
View 3D
Y_Beltpully_plug.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 66 times
