Mobius Camera - MoPro Tilt 35
Free

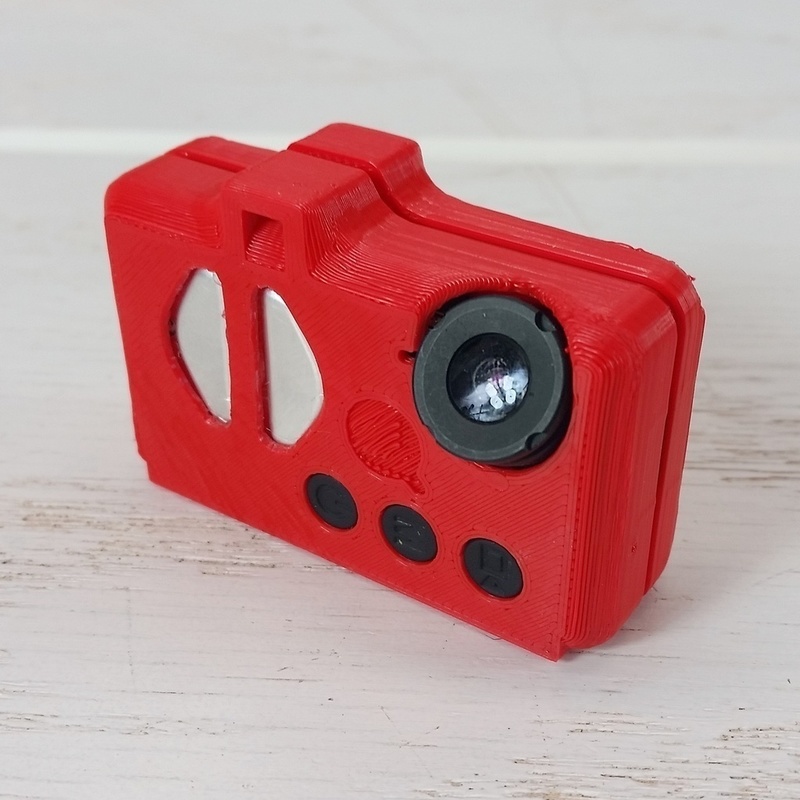

SummaryDrone Racing Mod for the Mobius Action Camera Update (6/02/16) Added version without any tilt The "MoPro" Mod takes the lens from the side of the camera and moves it to the front like a GoPro style action cam. New features include: Lens swap to the front of the camera Lens tilt to 35 degrees eliminating the need to tilt the camera when mounted Flatted out the camera bottom to provide more stability when mounted Zip-tie loop to easily secure the camera and eliminate risk of camera being ejected from aircraft To make the mod work you will need to purchase an upgraded Lens ribbon cable (link provided below) in order to twist the lens into its new position. http://www.ebay.com/itm/Mobius-Actioncam-1080P-2-5-CM-26-Pin-Lens-Extension-Cable-/291415457724?hash=item43d9b6ffbc:g:l4oAAOSw7aBVEkLxPost-PrintingI printed this in PLA and other filament should work just as well. Some filing around the usb port maybe be necessary to make the usb fit... I also filed the edges of the board itself slightly to fit into the new casing and line up all the screw holes. All of the existing screws that you will take out of the Mobius will be needed to secure the electronics back into this Modded case. Once you have everything packed nice and neat in the case an opening in the rear of the case allows you to apply some hot glue to the back of the camera and the case to secure the camera in place.

Loading comments...

Loading prints...

Mobius Camera - MoPro Tilt 35

likes
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

4 downloadable files:

QP_front_0.stl
STL Model
~1-5 MB
Est. size
back_MoProQ35.stl
STL Model
~1-5 MB
Est. size
QP_back_0.stl
STL Model
~1-5 MB
Est. size
Front_MoProQ35.stl
STL Model
~1-5 MB
Est. size
Free download - login required
Downloaded: 45 times
