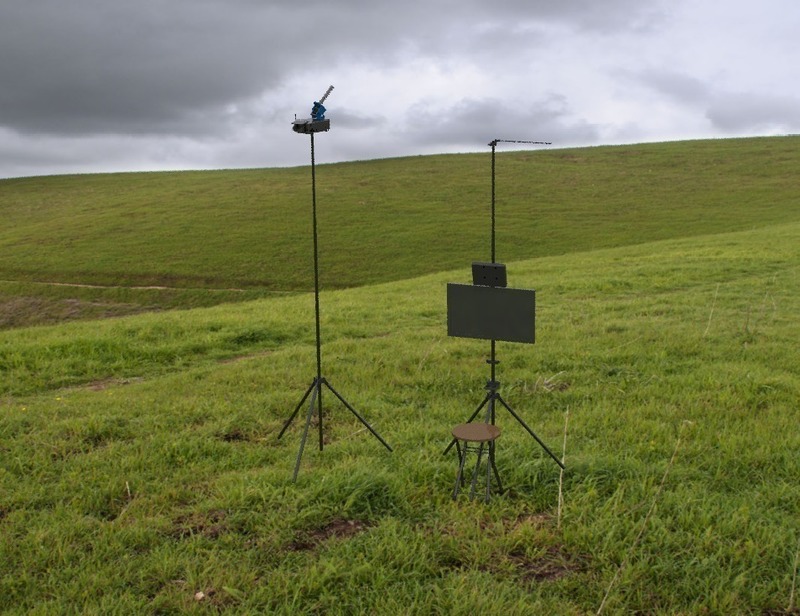

SummaryThis is our design for an FPV Ground Station using our EzAntenna Tracker Design for the tracker.
RC Controller holder has been designed for a Turnigy 9x and should fit the 9XR.
RC UHF Antenna mount is for the Rimlec Stock Antenna (i will be making a mount for the Dragon link Stock Antenna Soon.
The Tripod Mounts for the EzTracker have been CNC Machined but should be ok to 3D Print.
The Monitor brackets are for a 8" FPV Monitor.
The Large monitor is a 22" Logik TV Screen.
