Skywalker X5 Bungee Hook
Free

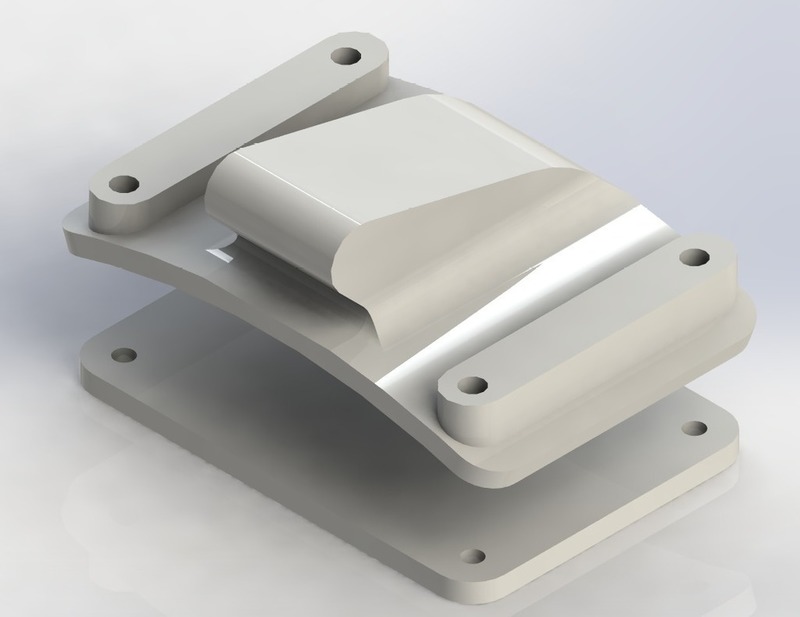

SummaryThis is a hook designed for the Skywalker X5 for use with a Bungee Launcher. Instructionsfind a suitable location on the underside of the x5 in-front of the CG (Centre of gravity) and mark the extruding foam needed to be cut out, after the foam has been removed fix the X5 hook to the bottom using double sided tape to hold in place. use a 3mm long drill bit and push it through the X5 hook hole and turn by hand slowly with little force until you break through into the compartment bay (Keep the drill bit as vertical as possible. repeat for all 4 holes. insert 4 x M3 long enough screws through the X5 Hook into the compartment bay. place the X5 inner plate over the screws and using 4 x M3 Nuts tighten until t pinches the foam on both sides

Loading comments...

Loading prints...

Skywalker X5 Bungee Hook

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

2 downloadable files:

View 3D
X5_Inner_Plate.STL
STL Model
36.6 KB
File size
View 3D
X5_Hook.STL
STL Model
521.4 KB
File size
Free download - login required
Downloaded: 46 times
