SummaryThis is our design for a 12 turn 5.8GHz tuned to 5645Ghz Frequency.
0.23 Wavelengths
14.07 dBi
Bandwidth (@ -1dB) Fmax/Fmin 1.06
Fmax: 5816.18 GHz
Fmin: 5478.85 GHz
Bandwidth (@ -3dB)
Fmax/Fmin: 1.13
Fmax: 6004.56
Fmin: 5306.96
Beam width (@ -3dB) 31.3 Degrees InstructionsParts Needed
Snips
Araldite
Vice
SMA Mount Plate
1mm Copper wire
Sharp Knife
3mm sheet of aluminium or copper for reflector
Loading prints...

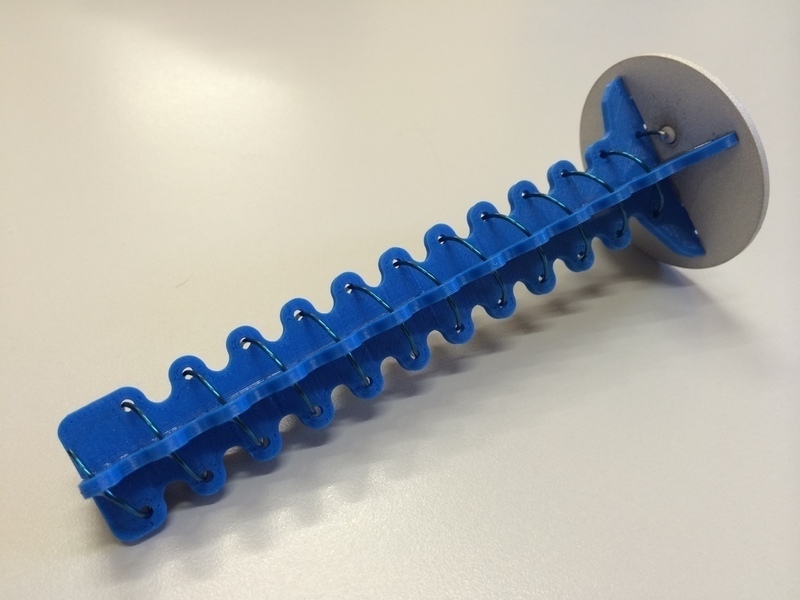

5.8GHz FPV 12 Turn Helical Antenna (5645 Frequency) RcHobbysUK B
