Bose Mini Bike Mount
Free

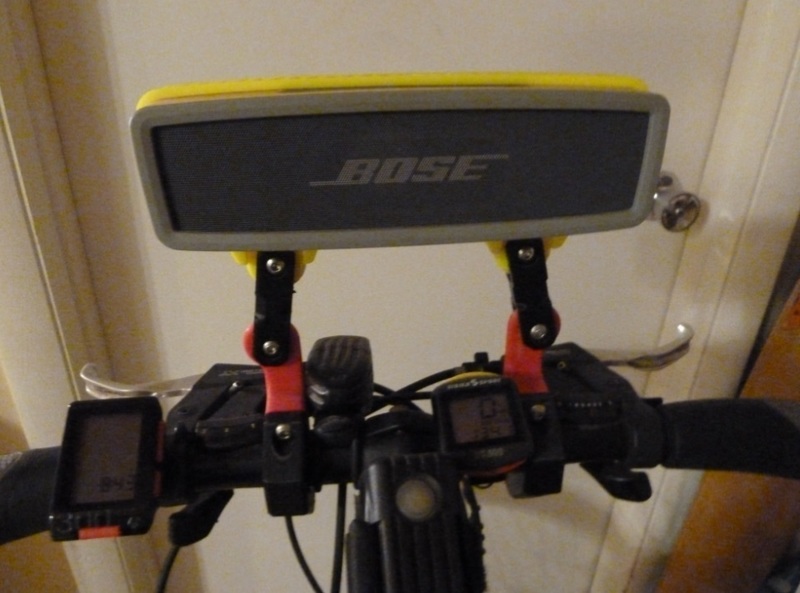

As many know, it's hard to beat the Bose Mini, and invariably when I ride around with this I get people asking about it and even kids shouting after me (they can't keep up). This design requires that you have a Bose case for your Mini. If you don't I would recommend that you consider getting one, since it provides an extra layer of shock protection. I went down not long ago and was glad I had the extra layer, saved it from scratches and possibly worse. There are many options available with this design: flip the arms  back and forth and moving the clamps parallelograms the mount, raising it up and down, as well as three different arm lengths. I recommend the shortest length that will work for you. The side mount works well for hi rise handlebars, beach cruisers etc.. There's a "lock" included here, which i don't find to be necessary,  but depending on print variations it may be useful. Requires 8 screws, 10-32 x 3/4" long button heads are ideal (i like socket heads which use a 1/8" allen wrench), but you can probably substitute other nearby sizes. No nuts needed with 10-32's. This design is easily printable and requires no support. I recommend ABS, but it works with PLA and other materials that you may have dialed in. Comments, commentary, criticism welcomed. Questions too.

Loading comments...

Loading prints...

Bose Mini Bike Mount

like
2 collections
Creative Commons Public Domain

The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.

CC0 Licensed under CC0
Files Included

8 downloadable files:

View 3D
Arm_3_Scaled.stl
STL Model
506.3 KB
File size
View 3D
Arm_3_short_scaled.stl
STL Model
506.2 KB
File size
View 3D
Arm_3_xtra_short_scaled.stl
STL Model
506.2 KB
File size
View 3D
Bar_Mount_1_Two_Inch_Tab.stl
STL Model
366.7 KB
File size
View 3D
Bar_Mount_2_Clamp_Scaled.stl
STL Model
185.8 KB
File size
View 3D
BM4_Bottom_Mount.stl
STL Model
130.5 KB
File size
View 3D
Bose_Sleeve_Lock_3.stl
STL Model
40.4 KB
File size
View 3D
Bose_Sleeve_Side_Tab_Scaled.stl
STL Model
242.3 KB
File size
