Microphone shock mount
Free

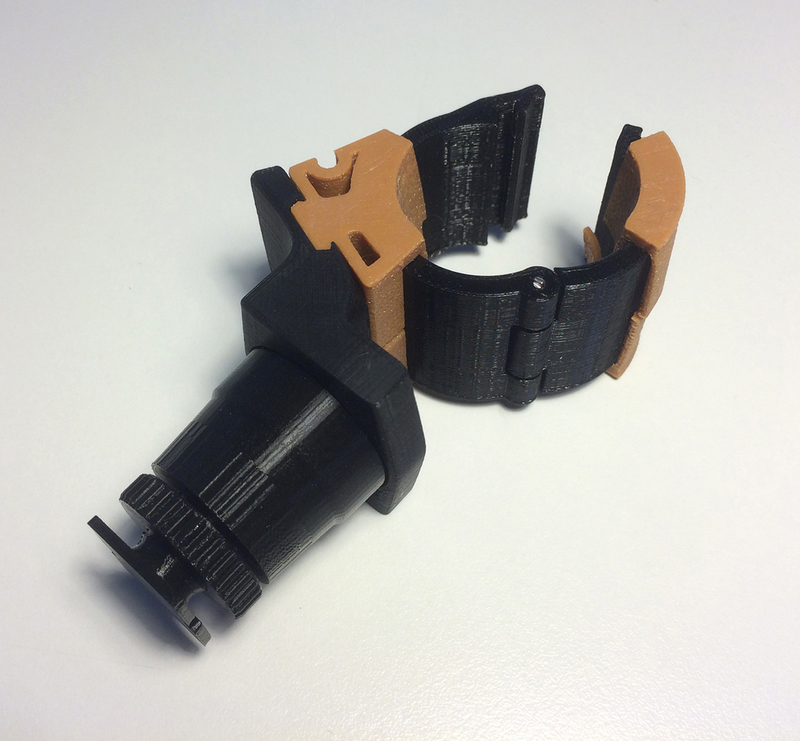

SummaryThese mounts can be expensive and they seem to get lost very easily, so… another request from my IT dept to design a 3D printable version. Lots on Thingiverse, but i like a challenge! Fits into a standard Flash Shoe mount, with Ninjaflex clamp ring mount and collar to isolate the mic from any vibration (tan coloured parts). All part are either thread or slot together - no glue should be needed. All parts print without supports at 0.2mm (or higher for threaded parts). Print the Flash shoe mount with 100% infill for strength. The mic clamp is joined at the hinge by a metal 'pin' (see parts photo) i discovered a cut down large paper clip worked great (1.75mm dia). Print in a strong filament of your choice. I used Faberdashery Classic Black http://www.faberdashery.co.uk/products-page/print-materials/classic-black/ and Caramel Ninjaflex http://www.fennerdrives.com/%20ninjaflex3dprinting/_/3d//. NOTE: This mount hasn't been fully tested, i will post updates if parts design evolve. Enjoy!

Loading comments...

Loading prints...

Microphone shock mount

like
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

4 downloadable files:

View 3D
MIC_ISOLATOR.stl
STL Model
490.5 KB
File size
View 3D
MIC_MOUNT_THREAD.stl
STL Model
848.4 KB
File size
View 3D
MIC_COLLAR.stl
STL Model
904.3 KB
File size
View 3D
MIC_MAIN_BODY.stl
STL Model
3.5 MB
File size
Free download - login required
Downloaded: 61 times
