Loft window bracket (variable position)
Free

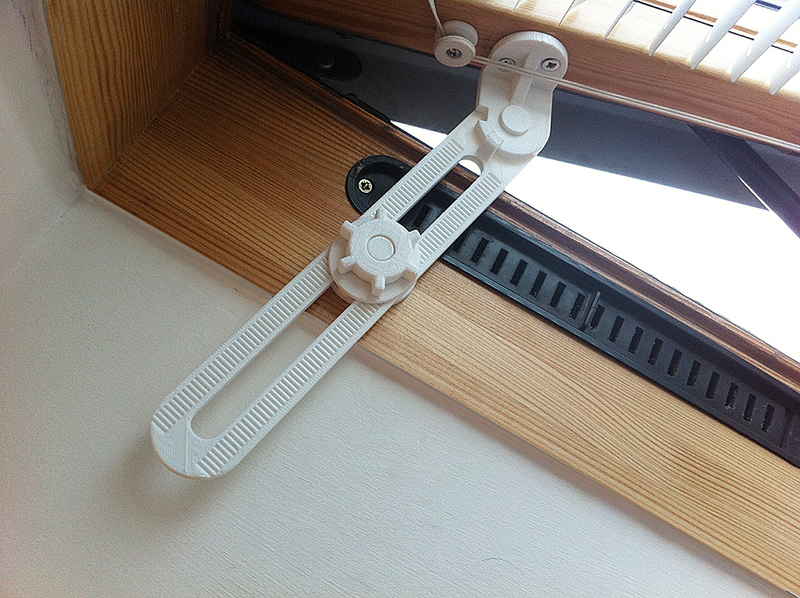

SummaryMy loft window would only hold position at fully open or closed - the gas struts that allowed it to open didn't have intermediate positions... So i designed and printed a variable position bracket to allow me to hold the window open at any position i wanted. Can also be used to keep box,trunk, etc. lids open Printed in PLA @ 0.3mm with a high infill for main support parts No supports or rafts needed (small inbuilt support to remove from 'Window_base.stl) Enjoy! UPDATE 280915: Replaced the file: LoftWindow_base.stl with LoftWindow_base_v2.stl. The break off supports weren't slicing in Cura. This version has slightly wider supports which solves that issue. DISCLAIMER: PLEASE, please DONOT use this bracket as the only support for the window or lid - it should only be used as a stay bracket and in a light loading situation. NEVER use this bracket as a safety device in an environment where small children have access to open windows. I accept no liability for any damage or injury caused by or as a result by the use of this item. ©2014

Loading comments...

Loading prints...

Loft window bracket (variable position)

likes
1 collection
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

5 downloadable files:

View 3D
LoftWindow_catch_base.stl
STL Model
~1-5 MB
File size
View 3D
LoftWindow_catch_slider.stl
STL Model
~1-5 MB
File size
View 3D
LoftWindow_knob.stl
STL Model
~1-5 MB
File size
View 3D
LoftWindow_base_v2.stl
STL Model
~1-5 MB
File size
View 3D
LoftWindow_bracket.stl
STL Model
~1-5 MB
File size
