THIS KIT WORKS BEST WITH 26'' Mountain Bike

                                                                                with a front dropout(100mm x9mm) and Back dropout (135mm x 9mm)

Hello guys this is my first 3d print kit...  unfortunatly i dont have a 3d printer yet....but i am trying my best to make this kit got print effortlessly for you guys i hope u like it and if there is anything that i can do for you guys please let me know in the comments below.... i dont have a 3d printer :/ but ill try my best to answer your questions......thank you for your interest......Have a nice day :D

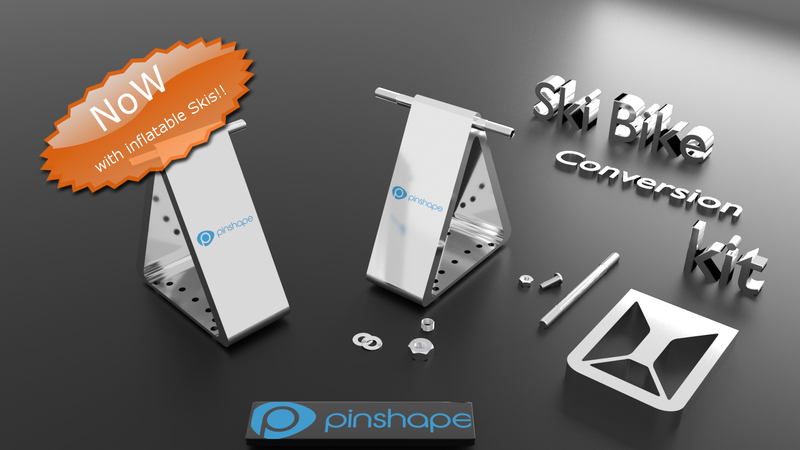

Content :-

1)      Mounting triangle x2*   {Dim:- front= 140mm wide back:- 150mm wide}

2)      Nut x2

3)      Torshion spring x2

4)      Spacer x2

5)      footrest { dimension :- 9cm 12cm 1.7cm } x1

6)      axle for footrest {175mm wide} with standard 3/8"(9.525mm) 26 Tpi x1

7)      (6mm) nuts and bolts

Bonus! :- 99cm Ski inflatable ski(this consist of 7 individual pieces with a max length of 15 mtrs + ski joint

P.S:- MORE INFORMATION IS IN THE DOCUMENT :D

HOW TO PRINT:-

All of the models should be printed with Plastic

here are some tips for best settings for the print {

}

and in order to perfectly fit in the joints to the ski parts :-

put the (PLA)joints in a boiling water then after 3min put it inside the ski part wate for it to get fit in... and thats IT! ur ski is ready :D

SETTING IT UP!! :-

AFTER successfully printing it we need to know how to setup the SKi conversion kit :-

U can read some important information from this site http://www.alpineskibikes.com/...

Step1 removing tires

Step 2 :-then just simply mount the mounting triangles to the front and rear dropouts then mount the triangle into the skis through given 6mm nuts and bolts

Step 3 :-then after setting up the front and rear its time to remove the paddles :-

Step 4 :-after removing the paddles simply put the standard 3/4 inch 16 tpi bicycle axle into the hole and then screw the stylis footrest into that axle

AND THATS IT.....................................NOW U ARE READY TO MASTER THE WHITE POWDER!!!

*( these numbers specifies the amount of minimum print that u need to make ur skibike a reality :D )

**(accept the ski(99cm) i am working on make it portable :D )
