This is compatible with all frames with 4.8*9.7 (distance from outside of hole to outside of hole) holes and power supplies with 12.5*8.6 (distance from outside of hole to outside of hole) holes

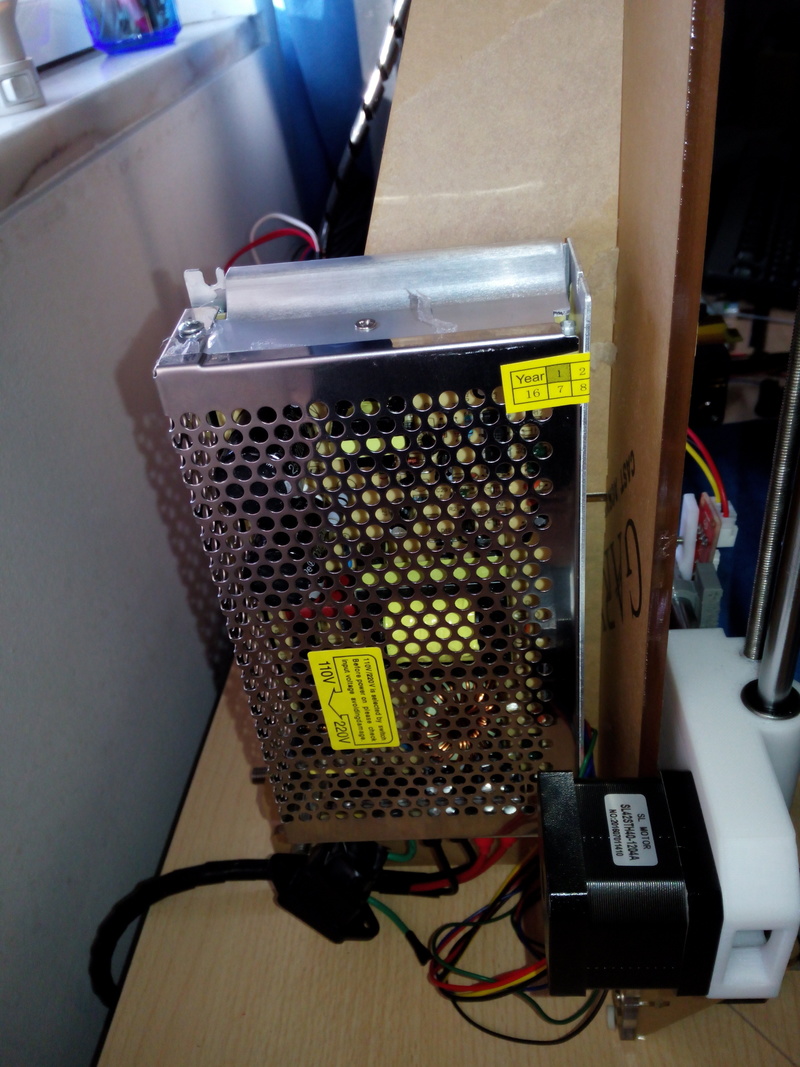

I needed to attach my Power supply to my Sintron prusa i3, so I decided to create a support/adapter that fitted the Sintron acrylic frame holes in the side.

The support/adapter is reservable so it will fit both the right and the left side of the printer after printedand.

Print Settings

Rafts:No

Supports:No

Resolution: .3

Infill:15% is the minimum I recommend

Wall Thickness: 3layers (top, bottom and sides)

Change Log: (dd/mm/yy)

27/08/16

• Updated with 2mm thicker design for better accommodation of the mounting screws

• Added STL's with different heights for mounting the power supply higher up
