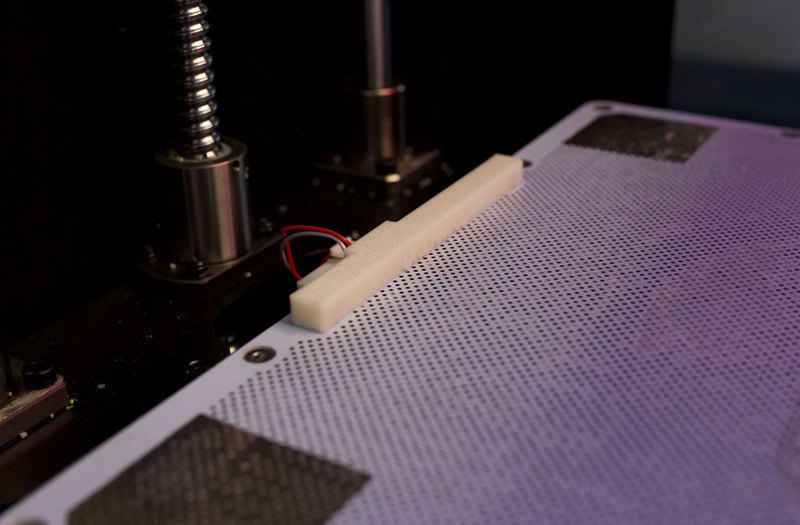

SummaryThis part can be printed in just 20 minutes and will protect your small plate sensor from being accidentally damaged whilst removing your parts from the perforated plate with a scraper.
To apply simply line up over the sensor and one of the two locators either side, then push from one end until the other fits over the second locator. You should have a snug fit, yet be able to lift the guard off with relative ease.
Please be aware this may need to be removed if printing to the full extent of the plate.Print SettingsPrinter: Zortrax M200Rafts: YesSupports: NoResolution: 0.19Infill: 10%Notes: We printed ours in Z-Ultrat at 0.19mm with 10% infill.
Loading prints...
Zortrax M200 Connector Guard
